Einleitung
This will guide you through the process of removing/replacing the Actuator Fwd/Rev switch on the Black and Decker PS-1800.
Werkzeuge
-
-

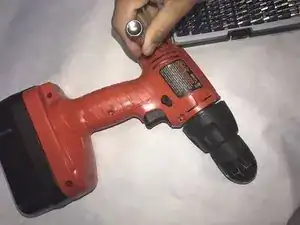

Lay the drill on its side, assuring that the screw holes are facing upwards.
-

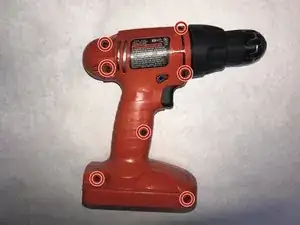

Remove seven 12 mm screws using a Phillips #00 screwdriver.
-
-
-

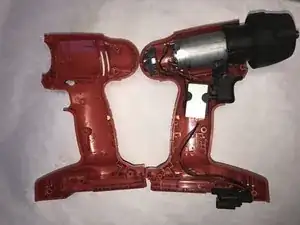

Start separating the outer shell into two parts.
-

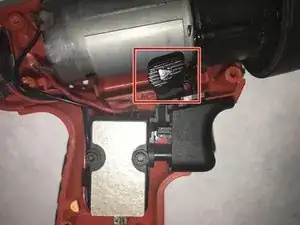

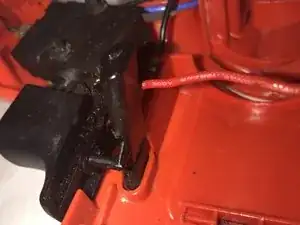

You will find the Fwd/Rev actuator on the right side of the drill, underneath the motor.
-
-
-

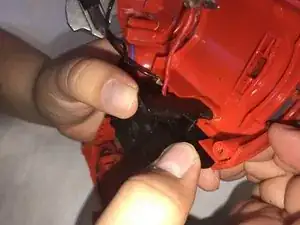

Carefully remove the actuator from the drill.
-

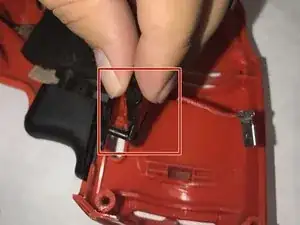

Replace the new actuator by inserting it the same way you took it out.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
