Black and Decker PS1800 Switch Replacement

Geschrieben von: Hamza Nawaz
  • Kommentare: 0
Black and Decker PS1800 Switch Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

7 - 10 Minuten

Einleitung

This guide describes how to replace the Black and Decker PS1800 switch. A soldering gun is necessary to replace the switch. Personal protective equipment is suggested.

  1. CWtjSVd3EXHXHClj
    CWtjSVd3EXHXHClj
    QElPlEFx2TLALUNS

    • Lay the drill on its side, assuring that the screw holes are facing upwards.

    • Remove seven 12 mm screws using a Phillips #00 screwdriver.

  2. HOIMchFWiA6FSlEi

    • Separate the outer drill case to expose the components and switch.

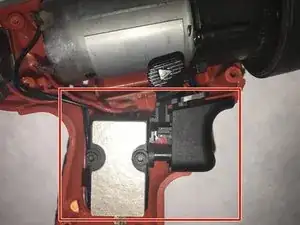

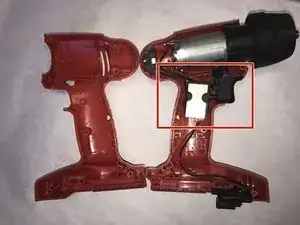

  3. EacLlOiWKtVXL2Ii
    EacLlOiWKtVXL2Ii
    eWPAYeibspnHSMJK

    • Identify the switch in center of the drill.

    • Remove the screws from the switch.

    • Remove the switch cover.

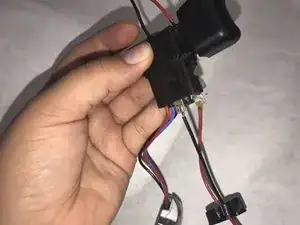

  4. bqqjwajGKeMtHoV4

    • Locate the switch inside the drill.

    • Remove the switch from the drill.

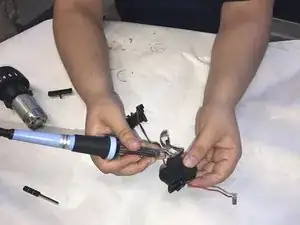

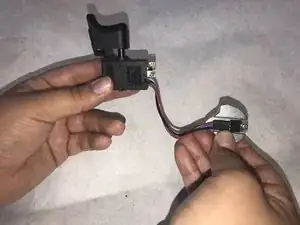

  5. EWO6NR2WoWeZQJre
    EWO6NR2WoWeZQJre
    ObRFKx3BQZp6EGFQ

    • Solder off all the joints.

    • Replace the switch joints.

    • Insert the new switch.

    • Return switch cover and tighten screws to hold in place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
