Black and Decker PS1800 Chuck Replacement

Geschrieben von: David Nawl
  • Kommentare: 1
Black and Decker PS1800 Chuck Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

1 - 2 Minuten

Einleitung

This guide will show you how to replace the Black and Decker PS1800's chuck.

  1. yKSoJKRKJxWBbokL
    yKSoJKRKJxWBbokL
    MEW4oUyWapPCjOv4

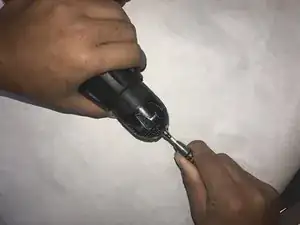

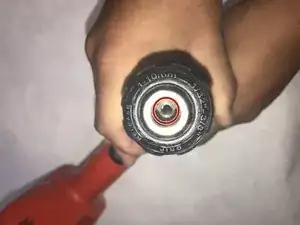

    • Using the T20 Torx Security screwdriver, take out the 2.3 mm screw inside the chuck.

  2. Zra1BsLFJZkLlkOP
    Zra1BsLFJZkLlkOP
    L35aKyWHflhdrwTk

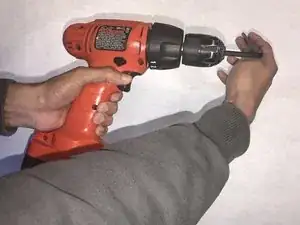

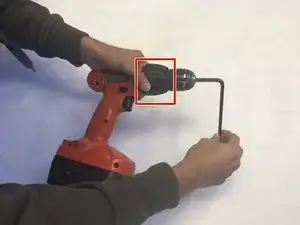

    • Set the drill to 'drill mode' and tighten the chuck with the Allen wrench in it.

    • 'Drill mode' is represented by the drill bit symbol

    • Use the Allen wrench to unscrew the chuck by rotating it counter clockwise.

  3. enwXOyyDcyfNl1ZF

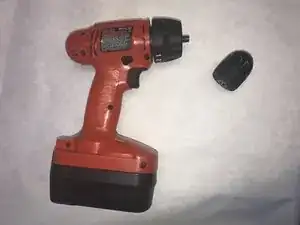

    • Remove the chuck completely by unscrewing it in a counter clockwise direction.

Abschluss

To reassemble your device, follow these instructions in reverse order.
