Black and Decker PS1800 Motor Replacement

Geschrieben von: Christian Aldrich
  • Kommentare: 0
Black and Decker PS1800 Motor Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

3 Minuten

Einleitung

This guide will show you how to replace the motor on the Black and Decker PS1800.

  1. CWtjSVd3EXHXHClj
    CWtjSVd3EXHXHClj
    QElPlEFx2TLALUNS

    • Lay the drill on its side, assuring that the screw holes are facing upwards.

    • Remove seven 12 mm screws using a Phillips #00 screwdriver.

  2. HOIMchFWiA6FSlEi

    • Separate the outer drill case to expose the components and switch.

  3. hnu4DOPmBjion2hN
    hnu4DOPmBjion2hN
    KrEJnx55gZIBwIVt
    DNqD3Zl2IoCXqRuk

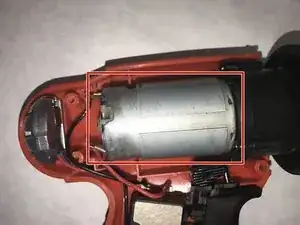

    • Locate the motor at the top left hand corner.

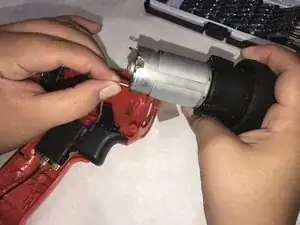

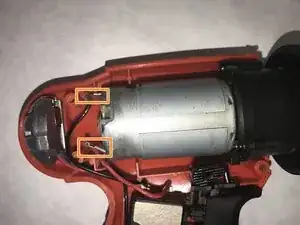

    • Carefully disconnect the red and black wires attached to the motor.

  4. 5MKsapCQFLEpddJW

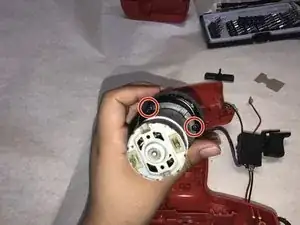

    • Unscrew the motor from the drill's transmission.

    • Detach the transmission carefully, ensuring that the gears remain intact.

  5. xSKWZWHyBVoilIwE
    xSKWZWHyBVoilIwE
    haVGr1KxvALwMd6q

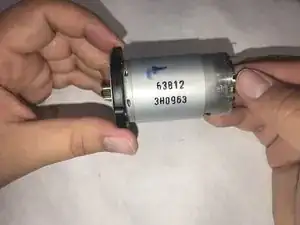

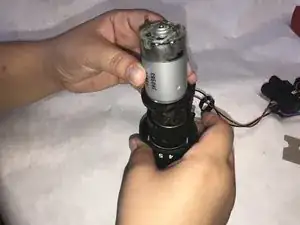

    • Remove the motor from the transmission assembly, as pictured.

Abschluss

To reassemble your device, follow these instructions in reverse order.
