Black and Decker Pivot Plus PD600 Battery Replacement

Geschrieben von: Jonathon Centofranchi
  • Kommentare: 19
Black and Decker Pivot Plus PD600 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 - 10 Minuten

Einleitung

If your drill stops working and the battery stops holding a charge chances are you need a new battery. You can find a replacement parts including the battery under the replacement part links in the device page. This guide will show you how to install this new battery.

  1. Qn63OQtSBsiNrIUD
    Qn63OQtSBsiNrIUD
    TkOvaFM4aJqKHTt1
    JA5EBGlrTPNt2uJK

    • Remove the nine 15mm Philips #1 screws

    • Remove the two 12.5mm Philips #1 screws

    • Remove the two 10mm Philips #1 screws

  2. ywUMC1Oec2eIb1w3

    • Lift one side of the drill casing off of the drill. Note that the drill casing consists of two pieces on either side of the drill.

    Dónde llevan los bujes de la a parte que van los engranes

    Rigoberto Silva -

  3. KZPcLURKEHdAlxYl

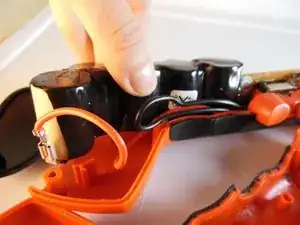

    • Locate the battery and remove it from its slot at the end of the drill opposite the motor. It should be at the butt of the drill by the handle.

    what kind of batteries can I use to replace them

    K3Ls -

    B+D sell the replacement for ~$17

    http://servicenet.blackanddecker.com/Par...

    scottlhertzoglion -

    I don't know what type of batteries are used in this drill, but you can buy them by clicking on the link entitled Black and Decker Pivot Plus PD600 Replacement Parts on the main page, or by using the below

    http://www.ereplacementparts.com/black-a...

    Jonathon Centofranchi -

    You should do a related tutorial on building your own replacement battery pack in this configuration, as this is used with the 600/600G and 700 G models.

    F V -

    1. What if you discover broken wires at the solder joints on the circuit board? 2. Which part of the charger connector is + and -? (The pin, or the shield?) Miike Smith 8/19/2021

    maddogsmith2003 -

    Is there a schematic for the circuit board available?

    maddogsmith2003 -

  4. 6xeuKsK4pp1qcMnG

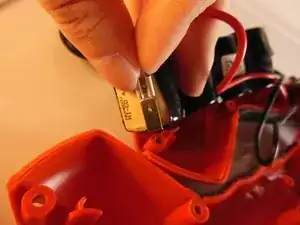

    • Unplug the battery by pulling out both the red and black wires. They should come out easily with a little bit of force.

    • But be careful not to disconnect the wire from the metal it is attached to. In order to avoid this, pull the wire out by holding on to the metal part instead of just the wire.

  5. 3sHfQubtLqIhEWsS

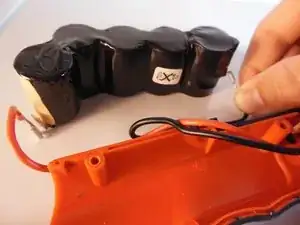

    • Now take the replacement battery and slide the metal parts of the wire into the metal part of the battery.

    • Make sure that the red wire connects to the curved end of the battery, and that the black wire connects to the straight end of the battery.

    It's possible to email me the battery and battery charger specifications

    Saeed.eslamikia43754@gmail. Com

    Saeed -

    The battery replacement pack is nearly as expensive as a new drill and seemingly unavailable (universally marked for backorder), making this impractical for two reasons. Can someone who has replaced the battery pack disassemble it so we can see what components it’s made of? It may be easier to rebuild the battery pack from individual components rather than to order a stock one.

    Also, the wires from the PCB connected to the motor are on the other side of the joint (where the drill bends), making the connections susceptible to metal fatigue. The black wire attached to the motor on my drill broke free from years of switching the joint from straight to charge and bent to use. I fixed it with scrap wire, cable ties, and a hot glue gun to ensure it never happens again.

    Kevin Fishburne -

    Very disappointed in this product!!!

    ???

    Donna Trezza -

Abschluss

To reassemble your device, follow these instructions in reverse order.
