Black and Decker TO1303SB Door Spring Removal/Replacement

Geschrieben von: Barrett Lowe
  • Kommentare: 5
Black and Decker TO1303SB Door Spring Removal/Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

10 Minuten

Einleitung

This guide will help repair the spring in your toaster oven door. If your door is squeaky or not opening/closing properly, this will help fix that problem. Even though this guide only has a couple steps, you must be careful when pulling the spring and twisting it. This guide is best done when using needle nose pliers.

  1. TFiblWRskj2OS5Ys
    TFiblWRskj2OS5Ys
    JvqL5vjSAfHYPcOM

    • Remove the six 9.5mm screws on the back panel using a #2 Phillips screwdriver.

  2. 5wwMO1jiwhF1wFON

    • Remove the two 13mm screws, located between the feet on the bottom of the cover, using a Torx T15 screw driver.

  3. T54TDVy4xBQhUJtc

    • Using the metal spudger, carefully pry out the rubber base on each foot to access the screws.

  4. TGEnBjhmAVeJGQm3

    • Remove the 11.5 mm screws using a #2 Phillips screwdriver.

  5. T6CMy1FILPXQJhlO
    T6CMy1FILPXQJhlO
    3j1I1QOZLllXHWcd

    • Remove the back cover by gently pulling the sides of the cover apart from the rest of the oven. Then, tilt the cover towards the face and pull back at an upward angle. The cover should slide right off.

    Beware: I have a similar but newer model, TO3260XSBD. The cover doesn’t slide off at all. It has metal safety tabs. There’s no easy way to get the cover off without severely bending it to expose each tab, then snipping them off with cutters.

    damoncampagna -

  6. KL5mYBy4MPEn3J1w
    KL5mYBy4MPEn3J1w
    TADZqq3hXVZVvRV6
    WJ5nlRnL1sBPDCxx

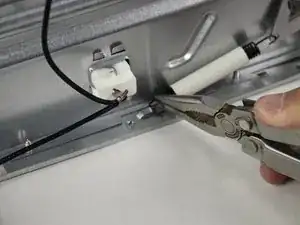

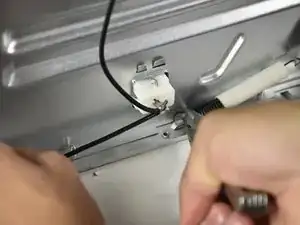

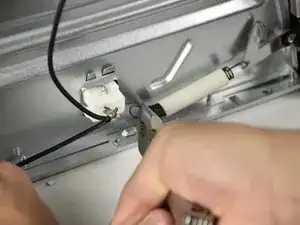

    • With the needle nose pliers, grasp the hook of the rear spring as close as you can to the coils. Stretch the spring back and, with a twisting motion, pull the hook out of its catch.

    • It is recommended to close the door before doing this.

    • Slowly relieve the tension after pulling it out of the catch or else it may damage the spring attachment.

  7. Q3fsppJvWVSWZVsw

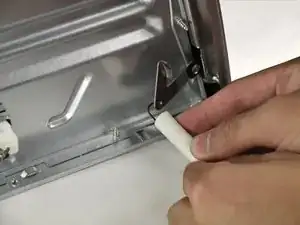

    • Pull the front hook out of the spring attachment.

    • When replacing the spring, it is recommended to start by reattaching the hook onto the rear catch, then the front spring attachment. Attaching to the front spring attachment first will cause unnecessary stress to the attachment and may cause it to deform.

Abschluss

To reassemble your device, follow these instructions in reverse order.
