Black and Decker TO1303SB Heat Controls Replacement

Geschrieben von: Alejandro Martin
  • Kommentare: 3
Black and Decker TO1303SB Heat Controls Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

25 Minuten

Einleitung

We will show you how to replace the heat controls for the oven and toaster settings. You will have to pop off the control knobs, take off the top cover, and remove screws in order to get to the controls. If your timer is not working, then unfortunately you will need to buy a new toaster over. Make sure you to place the screws back in the correct places and not to rip the heat shielding.

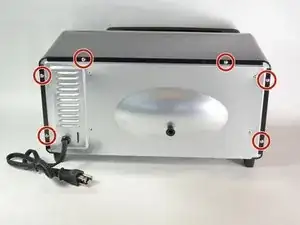

  1. TFiblWRskj2OS5Ys
    TFiblWRskj2OS5Ys
    JvqL5vjSAfHYPcOM

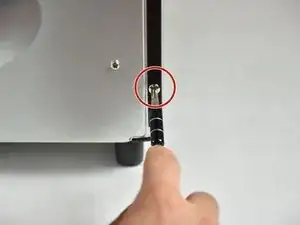

    • Remove the six 9.5mm screws on the back panel using a #2 Phillips screwdriver.

  2. 5wwMO1jiwhF1wFON

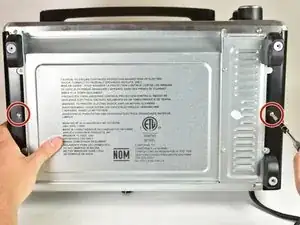

    • Remove the two 13mm screws, located between the feet on the bottom of the cover, using a Torx T15 screw driver.

  3. T54TDVy4xBQhUJtc

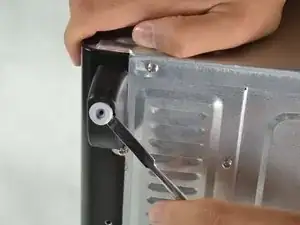

    • Using the metal spudger, carefully pry out the rubber base on each foot to access the screws.

  4. TGEnBjhmAVeJGQm3

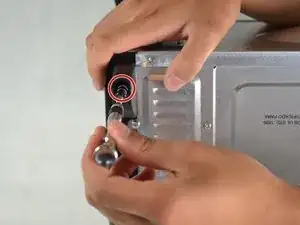

    • Remove the 11.5 mm screws using a #2 Phillips screwdriver.

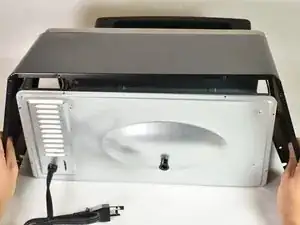

  5. T6CMy1FILPXQJhlO
    T6CMy1FILPXQJhlO

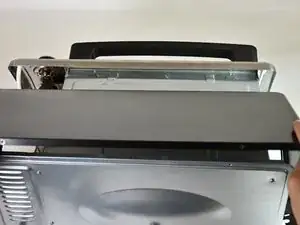

    3j1I1QOZLllXHWcd

    • Remove the back cover by gently pulling the sides of the cover apart from the rest of the oven. Then, tilt the cover towards the face and pull back at an upward angle. The cover should slide right off.

    Beware: I have a similar but newer model, TO3260XSBD. The cover doesn’t slide off at all. It has metal safety tabs. There’s no easy way to get the cover off without severely bending it to expose each tab, then snipping them off with cutters.

    damoncampagna -

  6. GFTKPJlGU2GxFQXa

    • Using two metal spudgers, pry the top control knob directly outward.

  7. fBmFIc2FWLVZnNuC

    • Using the two metal spudgers, pry the middle control knob directly outward.

  8. 5SYVB4CgwdWiGvLV

    • Using the two metal spudgers, pry the bottom control knob directly outward.

  9. 5AgZCH5U445NVHDS

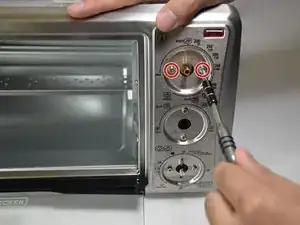

    • Remove the two 5.5mm screws, that are holding the oven controls to the face, using a #2 Phillips head screwdriver.

  10. PwbCpQ5kryVrDPB6

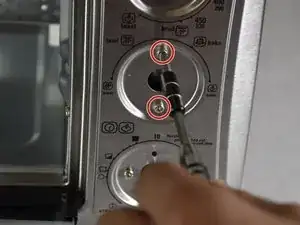

    • Remove the two 7.5mm screws, that hold the toaster controls to the face, using a #2 Phillips head screwdriver.

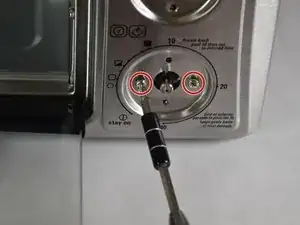

  11. pNEVHUSrDXXJTAnw

    • Remove the two 5.5 mm screws, that hold the timer to the face, using a #2 Phillips head screwdriver.

    • The timer is removed so that the wires that need to be un-clipped from the heat controls are easier to access.

  12. I2DFmlStdFhI3jiy
    I2DFmlStdFhI3jiy
    gtTPADHONJPJhxTv

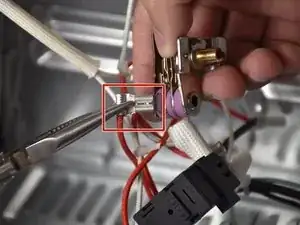

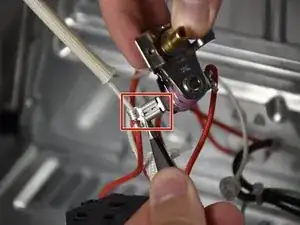

    • Press down the metal tab on the oven heat control connector using needle nose pliers and pull outwards to remove the connector.

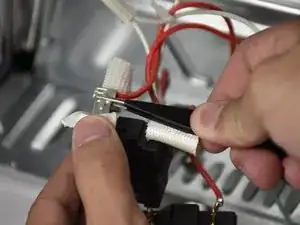

  13. 2jgw31GRYMAUb3A5

    • Using your thumb, carefully peel back the heat shielding from the connector on the toast heat control.

    • Press down the metal tab on the connector using needle nose pliers or tweezers.

    • Do not try to peel the heat shielding back too far; it tears easily.

    • Repeat for each of the three connections on the control.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Alejandro Martin

Mitglied seit: 01/10/15

339 Reputation

2 Kommentare

I got to removing the “back” cover. Black cover perhaps? There seem to be silver tabs from the front silver facing that are defeating my attempts to remove the cover.

Joe -

Hi Alejandro, could you tell me how to replace the heating elements. Or maybe just how to access them for better cleaning? Or maybe just suggestions on how to clean them while in place since they do rotate? Vinegar-water isn’t working. Thanks!!!

Ginny Lupo -
