Black and Decker WP900 Exterior Casing Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

Keine Schätzung

Einleitung

This page gives instructions for disassembling the Black and Decker WP900 6-Inch Orbital Waxer and Polisher to where the external casing can be removed from all internal workings.

Werkzeuge

Schritt 1

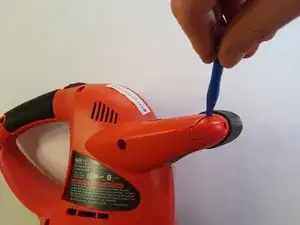

Using the plastic tool, detach the handle tab as shown.
Make sure the device is unplugged.

Schritt 2

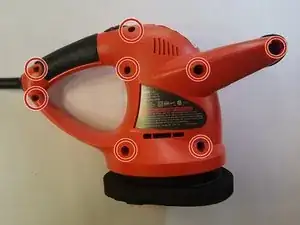

Using the Phillips #1 screwdriver, unscrew all of the screws. There should be 8-30mm screws to remove.
Be sure to keep track of where each screw was placed in the device for later reassembly.

Schritt 3

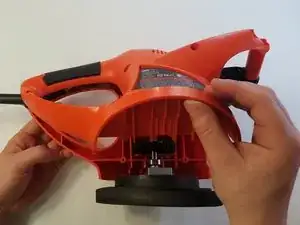

Remove the back panel of the external casing, leaving all internal components resting in the front panel.

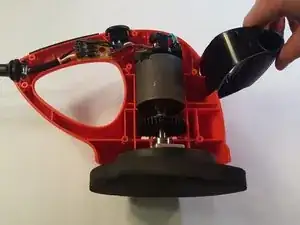

Remove the black handle from the main external casing.

Schritt 4

Using the Phillips #1 screwdriver, remove the two 22mm screws.
The metal bracket will detach with the two screws.
Using the Flathead 3/32" screwdriver, remove two 22mm screws.

why the circular head wobbling, was it get loose, how do i fix it

Naruto Antujipun - 04/02/19

Schritt 5

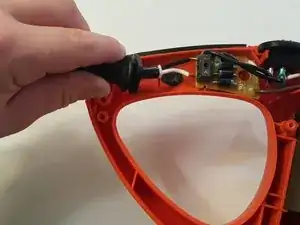

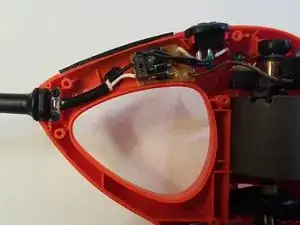

Gently pull the power cord out from the control module.
Remember, when reassembling the device, the black wire should be on the top.

Schritt 6

Firmly grasping the motor dislodge the internal components from the frontal external casing.
Once the motor has been removed, the external casing can now be replaced.

Abschluss

To reassemble your device, follow these instructions in reverse order.
