Black and Decker WP900 Motor Replacement

Geschrieben von: Stefan Wolowec
  • Kommentare: 4
Black and Decker WP900 Motor Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

Keine Schätzung

Einleitung

This page gives instructions for disassembling the Black and Decker WP900 6-Inch Orbital Waxer and Polisher to the point where the motor can be fully removed and replaced.

  1. bPCaPhrLqQv1x2wC

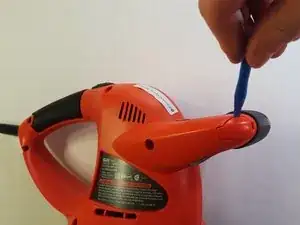

    • Using the plastic tool, detach the handle tab as shown.

    • Make sure the device is unplugged.

  2. hi5QGJelrNQNEsQW

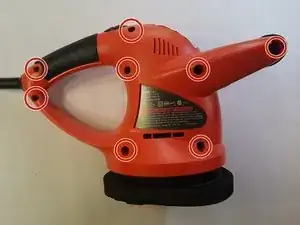

    • Using the Philips #1 screwdriver, unscrew all of the screws. There should be 8-30mm screws to remove.

    • Be sure to keep track of where each screw was placed in the device for later reassembly.

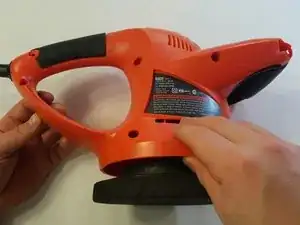

  3. rKyb13CTLEpjUGnD
    rKyb13CTLEpjUGnD
    SgwXnKLbJU3kymbQ
    xT2PhEaRClSBsjep

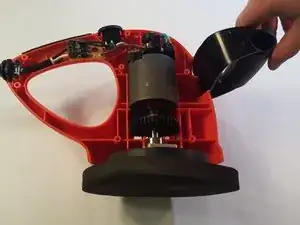

    • Remove the back panel of the external casing, leaving all internal components resting in the front panel.

    • Remove the black handle from the main external casing.

  4. 2cgsKZ3cpKQDMguA

    • Loosen the power cord and control panel. Using the Phillips #1 screwdriver, remove two 22mm screws.

    • The metal bracket will detach with the two screws.

    • Using the Flathead 3/32" screwdriver, remove two 22mm screws.

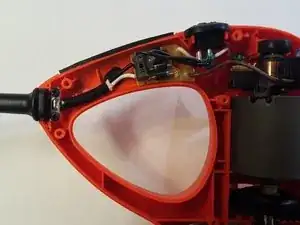

  5. fBENrYvHecVO5M1O
    fBENrYvHecVO5M1O
    QTacgcvkVaPxa31S

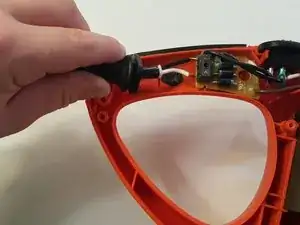

    • Gently pull the power cord out from the control module.

    • Remember, when you're reassembling the device, the black wire should be on the top.

  6. WxgkhfhkESYURYax

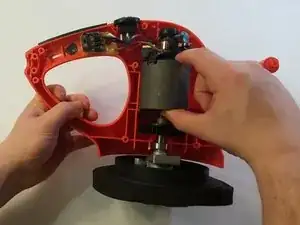

    • Firmly grasping the motor, dislodge the internal components from the frontal external casing.

    • Switch and control panel are attached to the motor.

  7. VsG1BC2dxZhAku6V
    VsG1BC2dxZhAku6V
    RCPRIYcQhew43KWw

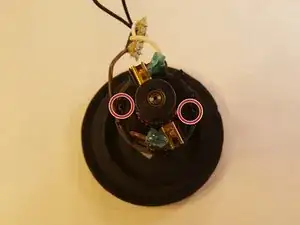

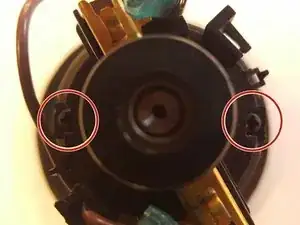

    • Using a Phillips #1 screwdriver, remove the two 22mm screws securing the brush assembly to the motor.

  8. cTydeNUF4PAHRaTI
    cTydeNUF4PAHRaTI
    QuFrDhI1nhwZUQbo

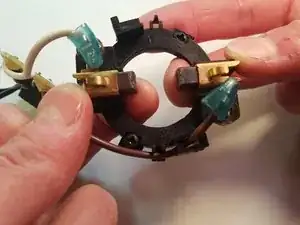

    • To fully remove the brush assembly from the motor, push the brushes (enclosed in the gold ribbing) outward and pull up.

  9. puAAfiSDpqL61V4O

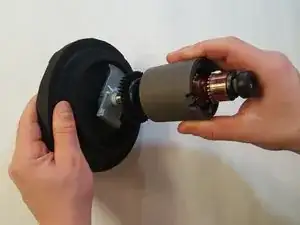

    • With a large amount of force, pull the motor up and off of the wire coil.

    The pad itself have fallen while im using it, can i still fix it?

    leworx_13 -

    The backing plate has drop can i still fix it? Please help

    leworx_13 -

    Do we know where we can order this motor part?

    Grant Gattuso -

Abschluss

To reassemble your device, follow these instructions in reverse order.
