Black and Decker WP900 Power Switch Replacement

Geschrieben von: Cameron
  • Kommentare: 1
Black and Decker WP900 Power Switch Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

10 Minuten

Einleitung

This page gives instructions for disassembling the Black and Decker WP900 6-Inch Orbital Waxer and Polisher to the point where the on/off switch can be fully removed and replaced.

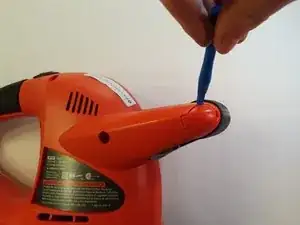

  1. iDGUMLoMyCenxESN

    • Using the plastic tool, detach the handle tab as shown.

    • Make sure the device is unplugged.

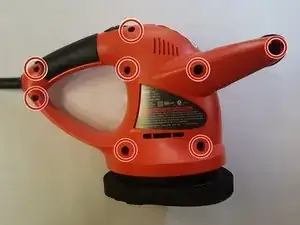

  2. ULUAtaCFWsIog6JN

    • Using the Philips #1 screwdriver, unscrew all of the screws. There should be 8-30mm screws to remove.

    • Be sure to keep track of where each screw was placed in the device for later reassembly.

  3. Cia6Nm4JAIj6IhAv
    Cia6Nm4JAIj6IhAv
    IasqFDBAdMMvU2Yi

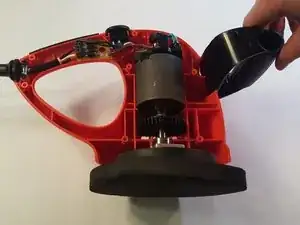

    pWEbfeuQs3xWrexP

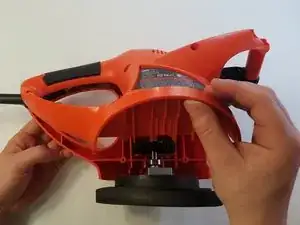

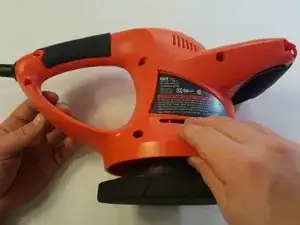

    • Remove the back panel of the external casing, leaving all internal components resting in the front panel.

    • Remove the black handle from the main external casing.

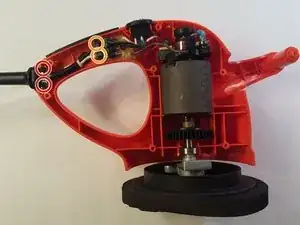

  4. PZhTEnyYtOxBmLFX

    • Loosen the power cord and control panel. Using the Phillip's #1 screwdriver, remove two 22mm screws.

    • The metal bracket will detach with the two screws.

    • Using the Flathead 3/32" screwdriver, remove two 22mm screws.

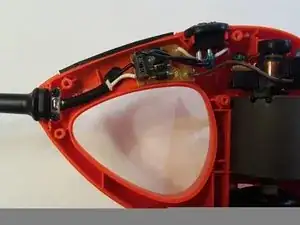

  5. GsOZFwbg5mNqCxVI
    GsOZFwbg5mNqCxVI

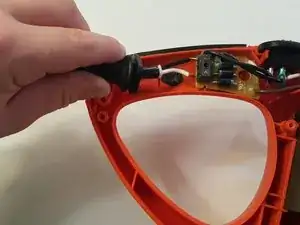

    lTOblgDLRqS4P5tR

    • Gently pull the power cord out from the control module.

    • Remember, when reassembling the device, the black wire should be on the top

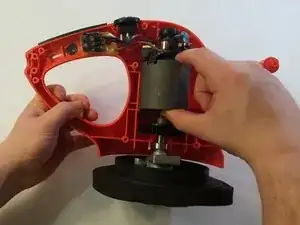

  6. av1OU25jeOE4bsgH

    • Firmly grasping the motor, dislodge the internal components from the frontal external casing.

    • Switch and control panel will be attached to magnet body.

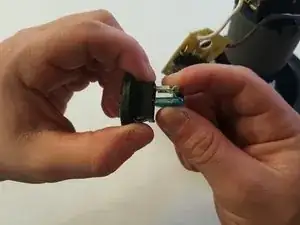

  7. MvNsePisYP4nCcuM

    • Remove the switch from the wires.

    • Gently, pull and release the two wired connections.

    • The switch can now be replaced. Be sure not to damage the two connections to the control module in the process.

    What is the part number for the switch. I can't find it. Thanks! Rick

    severtson100 -

Abschluss

To reassemble your device, follow these instructions in reverse order.
