BlackBerry 7100g Battery Housing / Speaker Replacement

Geschrieben von: Kellan
  • Kommentare: 0
BlackBerry 7100g Battery Housing / Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

10 - 15 Minuten

Einleitung

This guide shows you how to remove both the battery housing and the speaker.

  1. 2StMtiBUiwCapTyE

    • Turn over your BalckBerry 7100g so that the back cover is facing up.

    • Locate the battery cover release button near the bottom of the back panel.

  2. qBKE4PLaqvTH6URu
    qBKE4PLaqvTH6URu
    NpS6pgpfwETAUtBb
    tkwdOOXgDKhVAfNm

    • Push down on the release button with one thumb.

    • Slide the battery cover off with the other thumb.

  3. BH1SwvMCyFEeKLUg

    • Remove the battery from the battery housing by flipping up the top of the battery.

  4. FEVFElUVGETsc31x
    FEVFElUVGETsc31x
    SGpE1XsPLaV4c1DQ
    GE2yqIw1uACNNLP6

    • Locate the silver strip near the top of your BlackBerry.

    • Use a plastic opening tool to pry off the edge of the silver lining.

    • Slide the tool along the length of the silver strip to completely remove it.

  5. TuQUR3lNcF3GmhVW
    TuQUR3lNcF3GmhVW
    1cBHPgsT5KxfcoS1

    • Do not lose the screws. They are quite small and can easily be misplaced.

    • Locate and unscrew the four (4) screws using a T6 screwdriver.

  6. WqhdvBKgGQyBro5n
    WqhdvBKgGQyBro5n
    Va3FQRhs2OGIAMwg
    UWmftXtTpnux51Sr

    • The keypad cover may fall out of the housing when prying the housing apart.

    • Tightly pinch the top of the front and back halves of the housing.

    • Carefully pry the two halves of the housing apart.

  7. ZyVObroemutKbNaI

    • You can now easily remove the "guts" of the phone from the housing.

  8. UTWgcrUWQdQkKXCo
    UTWgcrUWQdQkKXCo
    wPZaR1EfHyAoYBqx

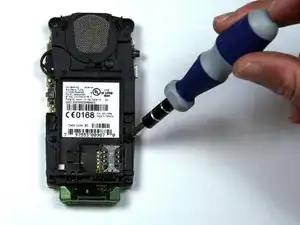

    • Turn over the motherboard so that the speaker is facing up.

    • Locate and unscrew the four (4) screws near the bottom of the motherboard, using a T6 screwdriver.

  9. MACRDvcqGoSTFmvA
    MACRDvcqGoSTFmvA
    cZoC3s4sbgSLJYAQ

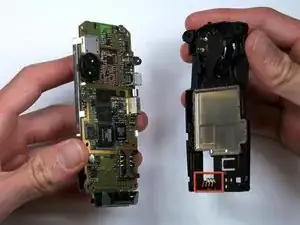

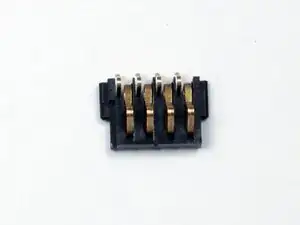

    • The battery terminal is separate from the battery housing.

    • Do NOT get rid of the terminal if replacing the battery housing and/or the speaker.

    • The terminal will slide out of the housing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
