BlackBerry 7100g Battery Terminal Replacement

Geschrieben von: Kellan
  • Kommentare: 0
BlackBerry 7100g Battery Terminal Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

10 - 15 Minuten

Einleitung

This guide describes how to replace the battery contact terminal, where the BlackBerry 7100g battery connects to the phone.

  1. 2StMtiBUiwCapTyE

    • Turn over your BalckBerry 7100g so that the back cover is facing up.

    • Locate the battery cover release button near the bottom of the back panel.

  2. qBKE4PLaqvTH6URu
    qBKE4PLaqvTH6URu
    NpS6pgpfwETAUtBb
    tkwdOOXgDKhVAfNm

    • Push down on the release button with one thumb.

    • Slide the battery cover off with the other thumb.

  3. BH1SwvMCyFEeKLUg

    • Remove the battery from the battery housing by flipping up the top of the battery.

  4. FEVFElUVGETsc31x
    FEVFElUVGETsc31x
    SGpE1XsPLaV4c1DQ
    GE2yqIw1uACNNLP6

    • Locate the silver strip near the top of your BlackBerry.

    • Use a plastic opening tool to pry off the edge of the silver lining.

    • Slide the tool along the length of the silver strip to completely remove it.

  5. TuQUR3lNcF3GmhVW
    TuQUR3lNcF3GmhVW
    1cBHPgsT5KxfcoS1

    • Do not lose the screws. They are quite small and can easily be misplaced.

    • Locate and unscrew the four (4) screws using a T6 screwdriver.

  6. WqhdvBKgGQyBro5n
    WqhdvBKgGQyBro5n
    Va3FQRhs2OGIAMwg
    UWmftXtTpnux51Sr

    • The keypad cover may fall out of the housing when prying the housing apart.

    • Tightly pinch the top of the front and back halves of the housing.

    • Carefully pry the two halves of the housing apart.

  7. ZyVObroemutKbNaI

    • You can now easily remove the "guts" of the phone from the housing.

  8. qvUBdRw1g6odT1GP
    qvUBdRw1g6odT1GP
    w6CmsKxRtRVI4epK

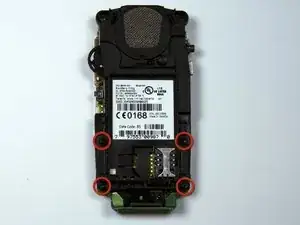

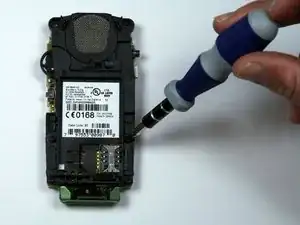

    • Remove the four screws holding the battery and speaker housing to the motherboard.

  9. vUuDiSbAvY5XOlO1
    vUuDiSbAvY5XOlO1
    COwqpCqlm1vFcEJf
    sHtaFiAnu5O243OM

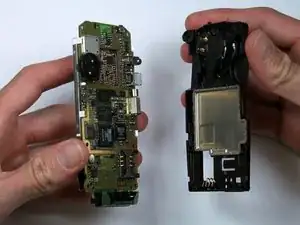

    • Once the battery housing is seperated from the motherboard, the battery terminal will slide off the battery housing.

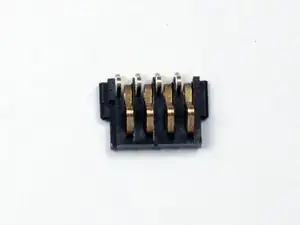

    • The small plastic piece with four metal pins is the battery terminal shown in the third picture.

Abschluss

To reassemble your device, follow these instructions in reverse order.
