BlackBerry 7100g Motherboard Replacement

Turn over your BalckBerry 7100g so that the back cover is facing up.

Locate the battery cover release button near the bottom of the back panel.

Push down on the release button with one thumb.

Slide the battery cover off with the other thumb.

Remove the battery from the battery housing by flipping up the top of the battery.

Locate the silver strip near the top of your BlackBerry.

Use a plastic opening tool to pry off the edge of the silver lining.

Slide the tool along the length of the silver strip to completely remove it.

Locate and unscrew the four (4) screws using a T6 screwdriver.

Tightly pinch the top of the front and back halves of the housing.

Carefully pry the two halves of the housing apart.

You can now easily remove the "guts" of the phone from the housing.

Turn over the motherboard so that the speaker is facing up.

Locate and unscrew the four (4) screws near the bottom of the motherboard, using a T6 screwdriver.

Do NOT get rid of the terminal if replacing the battery housing and/or the speaker.

The terminal will slide out of the housing.

Turn the "guts" over so the speaker is facing up.

Locate and unscrew the four (4) screws near the bottom of the motherboard, using a T6 screwdriver.

Separate the battery housing from the motherboard.

Pull the keypad off of the motherboard.

Locate the ribbon connector below the bottom of the screen.

Use a spudger to flip up the connector.

Locate the four (4) white tabs that attach the screen to the motherboard.

Carefully detach the tabs from the motherboard.

The screen can now be removed from the motherboard.

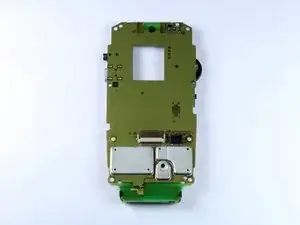

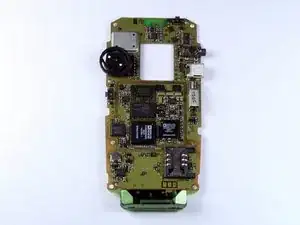

You have successfully removed the motherboard.
