Einleitung

Use this guide to replace the motherboard on your RIM BlackBerry 7290.

  1. W3fqrsDe5CewbEBo
    W3fqrsDe5CewbEBo
    GUXtAGURvrShxetY
    FNw32cd1NMMaeCsO
    • Apply pressure to the lock button on the back of the device.

    • Slide the battery cover down towards the bottom of the device, revealing the battery compartment.

  2. sg2OLo1LQWjWDJAy
    sg2OLo1LQWjWDJAy
    PCKKCbWfDjiesoSr
    FFsj4Y1LekPhVJJY
    • Locate groove along the right side of the battery compartment.

    • Remove battery by prying between the battery and the groove.

  3. vLAWk4lVNUhvNTPA
    • Slide the SIM card holder to the left to unlock the SIM card.

  4. wLQw1rKyYxNUHRGu
    wLQw1rKyYxNUHRGu
    BuWO15VGYKNDikAJ
    • Lift the SIM card holder up.

    • Gently remove the SIM card from the SIM card holder by sliding the card along the railing.

  5. PPrTdgK6WAjrik5S
    • Locate the four screws along the perimeter of the back casing.

    • Remove the four top screws using a T-6 torx screwdriver.

    • The top four screws are .413 inches.

  6. gywYiSHc3QwbqSZS
    gywYiSHc3QwbqSZS
    xUQYCuMaE3U666hH
    • Locate two screws within the lower edge of the inner compartment.

    • Remove the two bottom screws using a T-6 torx screwdriver.

    • The bottom two screws are .2 inches in length.

    • The second picture displays the device after the six screws have been removed.

  7. ubilnYicPffTWegL
    • Use the plastic opening tool to apply pressure on the two clips that are located at the bottom of the phone.

  8. WUN6QjMPwx6ItbSQ
    WUN6QjMPwx6ItbSQ
    LbX1iL2yLlxUtHnw
    vOOrtyRMPbKYn3cW
    • Remove the back casing from the phone by lifting the unhooked portion, then slide the casing towards the top of the device.

    • Make sure all clips holding the case together are unhooked, so no damage is caused to the case.

  9. 2g3KCGeIThXPly2I
    2g3KCGeIThXPly2I
    UUVaLqkFsd5H1Hjw
    • Locate on the backside of the phone, a screw towards the top of the device.

    • Using a T-6 screwdriver, remove the screw.

    • After the screw has been removed, carefully lift the side button brace to reveal the side button.

  10. pPip3hQMMVY2BsNS
    • To remove the phone's internals, start by loosening one side by pulling gently.

  11. BLnRReJlrmQUmhli
    • With one side loosened, simply lift the phone internals to separate from the front casing.

  12. SQVY4oxlL4C1Jk5L
    • Turn the internals over to reveal the LCD display.

  13. 2OV1Ai2DusJ4SxwP
    2OV1Ai2DusJ4SxwP
    go4ORNdyNh624eVg
    • Peel off the rubber keypad buttons from the face plate.

  14. K6fjHVJoGZFJONMY
    • Locate a hook on the right side of the internals below the volume wheel.

    • Use a plastic opening tool to gently pry the hook, separating the LCD display from the logic board mounting plate.

  15. qUDVyEw4SCOoQMLH
    qUDVyEw4SCOoQMLH
    yrk56oMwas1OEnNi
    • With the clip unhooked, gently separate the display from the phone internals by pulling.

  16. EwZPFOwAfDAcwCNe
    • On the front side of the internals, locate the the three screws that are highlighted in red.

    • Carefully remove screws from the internals, using a T6 torx screwdriver

    • The screw is .2 inches in length.

  17. 5EIBjMrEN6ydioih
    5EIBjMrEN6ydioih
    Q4oNhQNMge5RuuLG

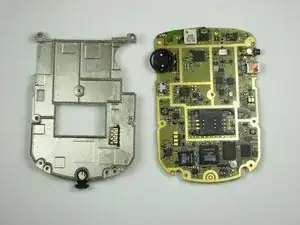

    • Separate the logic board mounting plate from the logic board by lifting with minimal force.

Abschluss

To reassemble your device, follow these instructions in reverse order.
