BlackBerry 7510 LCD Screen Replacement

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

15 - 25 Minuten

Einleitung

This guide demonstrates how to remove and replace the LCD screen.

  1. wIbffSdyFAi2PSGZ

    • Remove the battery cover and battery before continuing.

    • Remove the six T6 Torx screws on the back of the phone.

    • Make sure to keep the screws somewhere that they will not get lost.

  2. bFPDMrHho4C1k2GA

    • Using your finger nail or a spudger, carefully pry up the back cover.

    • Begin in one spot and slowly circle around the device as you pry up all of the back cover.

  3. OVmLS1FJjZLhuXwL

    • Lift off the back cover.

  4. xjpWQ3vyHtWUONBn

    • Remove the two T6 screws.

  5. NHAYpf2hLn5BvaK6
    NHAYpf2hLn5BvaK6
    KcK6cjFlCoxpbdKq

    • Remove the daughterboard.

    • Remove the exposed vibration motor.

  6. YPh41VYrCpKkMwQW

    • Unscrew the screw holding the back plate.

  7. XhshMpjfZV2JrS22
    XhshMpjfZV2JrS22
    mtfsoYb3LbyrVd4D

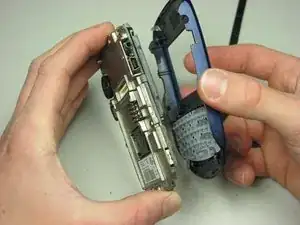

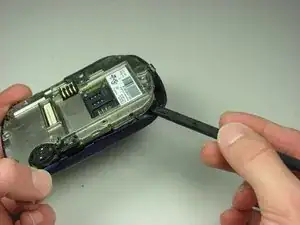

    • Carefully pry off front cover. Make sure the plastic clips are unlatched before applying force.

    • Lift off front cover from metal plate.

  8. UhNGLROQNfDMyKQB

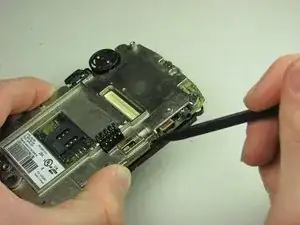

    • Pry off the LCD screen with spudger at the two clips.

  9. FmUGaO4CflugQjC2
    FmUGaO4CflugQjC2
    FQnFGBlwhIZdKblI

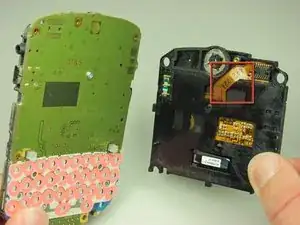

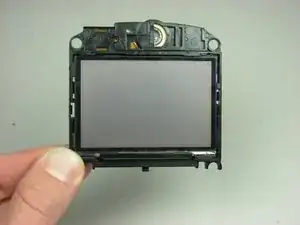

    • Remove the LCD screen and replace it with a new one.

    • Careful not to rip the LCD ribbon.

Abschluss

To reassemble your device, follow these instructions in reverse order.
