This repair guide shows how to remove the battery on the BlackBerry 8703e.
Werkzeuge
-
-

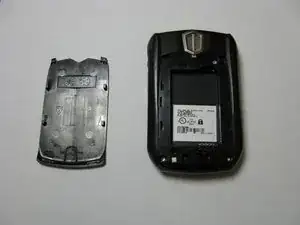

Position your phone like the first image so that the highlighted button is on your left.
-
Slide the battery cover to the left while pressing the button with one hand and applying pressure on the center of the phone with your other hand.
-
Remove the cover completely and set it aside.
-
-
-
Position your phone like the image to the left, then locate the rectangular battery in the middle of the phone.
-

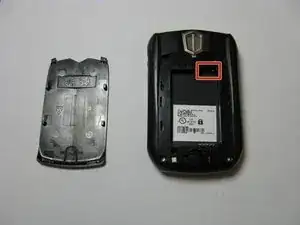

Locate the notch on the top right of the battery compartment.
-
Slide your fingernail or the flat end of a Spudger in the notch, then lift upwards on the top of the battery to remove it from the phone.
-
Set the battery aside and out of the way.
-
To reassemble your device, follow these instructions in reverse order.
