BlackBerry 8820 Keyboard Replacement

Geschrieben von: ryan
  • Kommentare: 0
BlackBerry 8820 Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

20 - 25 Minuten

Einleitung

This guide will show you how to replace the keyboard of the BlackBerry 8820. In order to do so, you must have a 1/16" diameter torx screwdriver and a plastic opening tool.

  1. OTimDBAnSvLUXAlr

    • Remove the battery cover by applying pressure and sliding down the silver square on the back of the phone.

  2. jXTG6I4MmjwrFvuA
    jXTG6I4MmjwrFvuA
    GTZ1FJQdQbvdVcmM

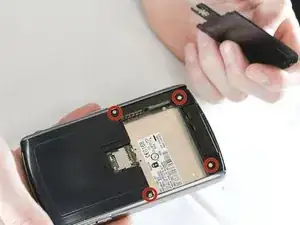

    • Remove the battery by prying under it with your finger or the plastic opening tool.

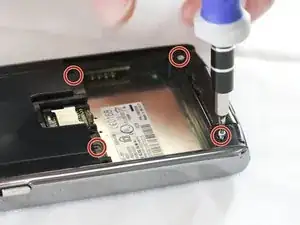

    • Remove the four small 3/8" long screws using a 1/16" diameter torx screwdriver.

  3. YRIugBB2yretubjK
    YRIugBB2yretubjK
    wDyPljvdw5dNHhXI

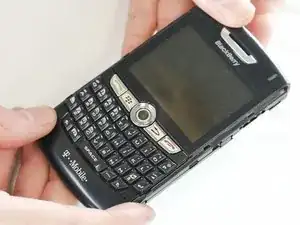

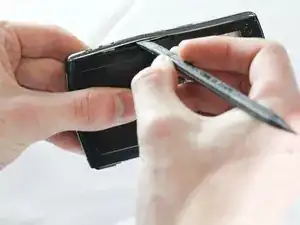

    • Use a nylon spudger to carefully remove the two side bars of plastic.

  4. e4FywJrDEBbHVSbc

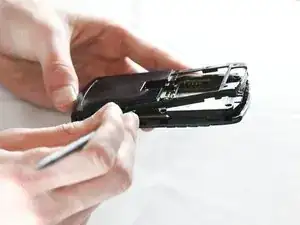

    • Use a nylon spudger to carefully pry the back casing off.

    • There are two small clamps on each edge that need to be unhooked before the casing will come off.

  5. XlQiBqqIpDdeZWJW

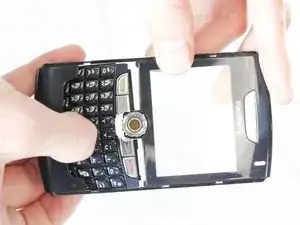

    • Pry off the front casing.

    • Be aware of sensors and other sensitive areas of the newly exposed electronics.

  6. WmQHZcOmQO3UvYHA

    • Slide the keyboard downwards, as shown.

    • The keyboard will detach from the casing with a small amount of pressure.

  7. RFmSKGBBBWY2DxTo
    RFmSKGBBBWY2DxTo
    gC3LaCbLNlfPKgRQ

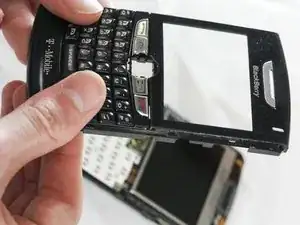

    • Slide the new keyboard into the casing. If done correctly, it should click into place and stay secure.

Abschluss

To reassemble your device, follow these instructions in reverse order.
