BlackBerry 8820 LCD Screen Replacement

Remove the battery cover by applying pressure and sliding down the silver square on the back of the phone.

Remove the battery by prying under it with your finger or the plastic opening tool.

Remove the four small 3/8" long screws using a 1/16" diameter torx screwdriver.

Use a nylon spudger to carefully remove the two side bars of plastic.

Use a nylon spudger to carefully pry the back casing off.

Pry off the front casing.

After disassembling the outer casing, the phone should be stripped as shown.

At the top of the phone, locate the gloss SATA cable strap connecting the LCD screen to the phone.

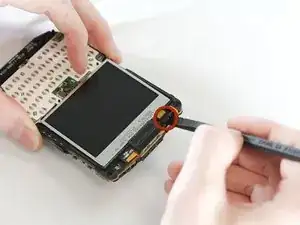

Using the prying tool, unattach this cable by levering under the connector.

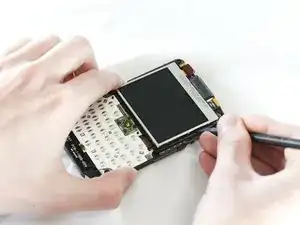

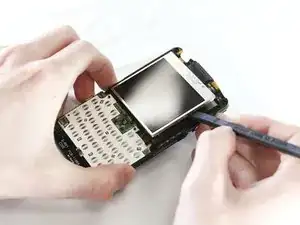

Using the prying tool, lever up the old screen as shown.

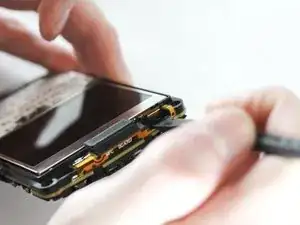

Insert new LCD screen.

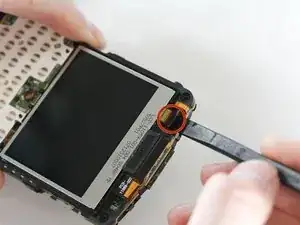

Attach cable to the connector located at the top of the phone.

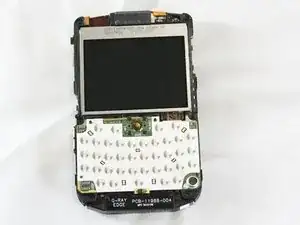

Phone should look as it was prior to screen removal.
