Replace your faulty motherboard with a new one.

  1. OTimDBAnSvLUXAlr
    • Remove the battery cover by applying pressure and sliding down the silver square on the back of the phone.

  2. jXTG6I4MmjwrFvuA
    jXTG6I4MmjwrFvuA
    GTZ1FJQdQbvdVcmM
    • Remove the battery by prying under it with your finger or the plastic opening tool.

    • Remove the four small 3/8" long screws using a 1/16" diameter torx screwdriver.

  3. YRIugBB2yretubjK
    YRIugBB2yretubjK
    wDyPljvdw5dNHhXI
    • Use a nylon spudger to carefully remove the two side bars of plastic.

  4. e4FywJrDEBbHVSbc
    • Use a nylon spudger to carefully pry the back casing off.

    • There are two small clamps on each edge that need to be unhooked before the casing will come off.

  5. XlQiBqqIpDdeZWJW
    • Pry off the front casing.

    • Be aware of sensors and other sensitive areas of the newly exposed electronics.

  6. gCvaihyxeiTwe56U
    gCvaihyxeiTwe56U
    6DVQYWcufhfveAtQ

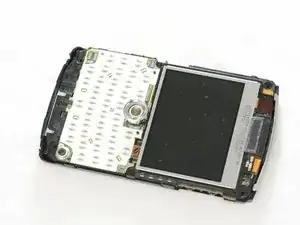

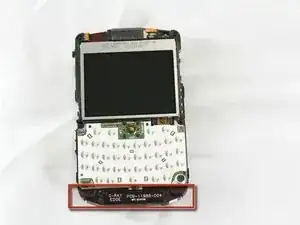

    • Remove the bottom casing clip, it will easily unsnap when pulled

  7. 2XkAbuGsHZ23GjLZ
    2XkAbuGsHZ23GjLZ
    VdeVjewVKiBcwOLl

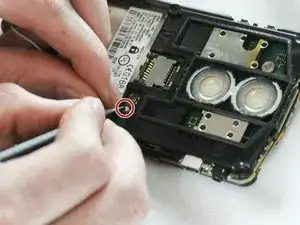

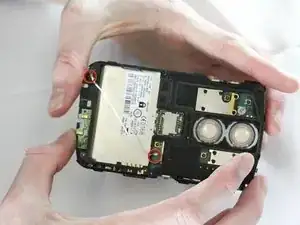

    • Unhook both sides of the white wire from the motherboard using the plastic opening tool from before

  8. LPQntuTBt2OtOFs6
    LPQntuTBt2OtOFs6
    mLvvsaZDvuOLW4wK

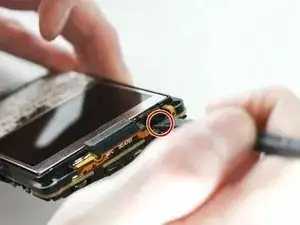

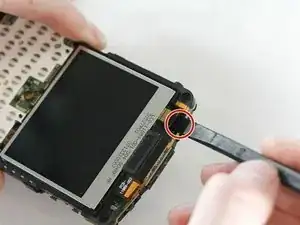

    • At the top of the phone, locate the gloss SATA cable strap connecting the LCD screen to the phone.

    • Using the prying tool, unattach this cable by levering under the connector

    • When removing the ribbon cable handle with care; it is prone to breaking

  9. 5rnBhpZ3fETVCeAK
    5rnBhpZ3fETVCeAK
    lNMhTWlHyqMTlGCC

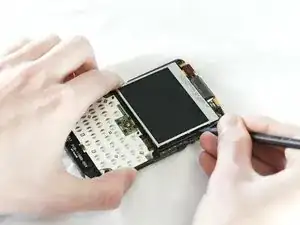

    • WARNING: Be sure to have disconnected the SATA cable strap prior to attempting this.

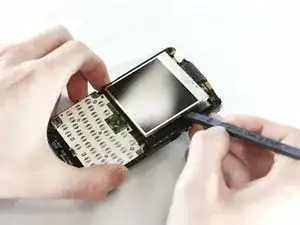

    • Using the prying tool, lever up the old screen as shown.

  10. UYdSXfCptmKAYIsL
    UYdSXfCptmKAYIsL
    mGaaTsIOIVp6ar2L
    XLVDHNVNDHDEuvpQ

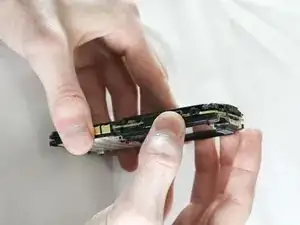

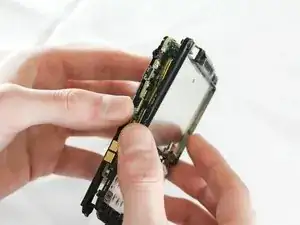

    • There will be two small clips on each side of the motherboard. Using the plastic opening tool unhook each clip one at a time

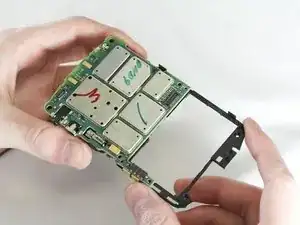

    • Once all four clips are unhooked you should be able to pull the motherboard from the casing using your hands.

    • After you remove the old motherboard, you can then replace it with a new one.

Abschluss

To reassemble your device, follow these instructions in reverse order.
