Einleitung
This guide will demonstrate how to remove the trackball on a BlackBerry 8820. To reassemble the device, please follow the instructions provided in reverse order.
Always exercise caution when handling electronic components.
Werkzeuge
-
-
Remove the battery cover by applying pressure and sliding down the silver square on the back of the phone.
-
-
-
Remove the battery by prying under it with your finger or the plastic opening tool.
-
Remove the four small 3/8" long screws using a 1/16" diameter torx screwdriver.
-
-
-

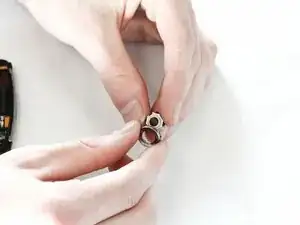

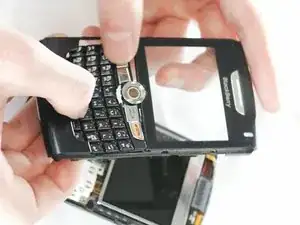

After removing the front from the outer casing, the track ball will come off attached to the casing.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
