BlackBerry Curve 8310 LCD Screen Replacement

Geschrieben von: Mandy Chan
  • Kommentare: 0
BlackBerry Curve 8310 LCD Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

10 - 15 Minuten

Einleitung

  1. RlJnfVYTSRvjKrWc

    • Press down on the battery release button and slide the back cover up with your thumb.

  2. teAmjMSl3QlGXZYr

    • Pry from the top of the battery to pull it out.

  3. IjCORSSRqgwCsjlD

    • Slide the metal sim card cover to the unlock position.

    • Remove the sim card.

    • The arrows on the sim card enclosure indicate the lock and unlock positions.

  4. hDM54xxTORcRSHYq

    • Remove the two T5 Torx screws circled at the top of the phone.

    • The T5 Torx screws may be covered by a white sticker.

  5. wWixdBjUgttQWMgP

    • Remove the red cover at the bottom of the phone.

    • You may have to work a spudger underneath to release the plastic clips.

  6. Qv4p6OsbGelfh1bj
    Qv4p6OsbGelfh1bj
    6xPZiSKQB6bf6Jsm
    RYtTKSCYwHWIfBOY

    • Be careful not to damage the front cover's plastic clips while trying to separate it from the phone.

    • Use a spudger to pry the front cover away from the side panels.

    • Work the spudger around the entire phone until the front cover is free.

  7. KA6otjWgEeTGgIBY

    • Remove the keyboard.

  8. d1KATWFhdiQXgcqc

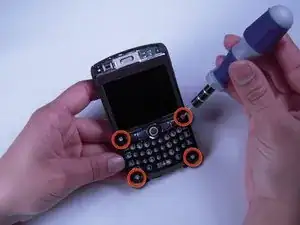

    • Remove the four T6 Torx screws located on the corners of the keyboard frame.

  9. tQSiZkGmAsy3ttKv
    tQSiZkGmAsy3ttKv
    WvNBJyvVrbmZPKZG

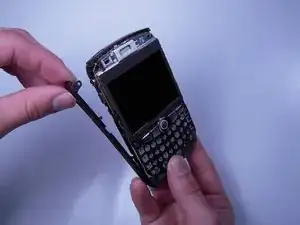

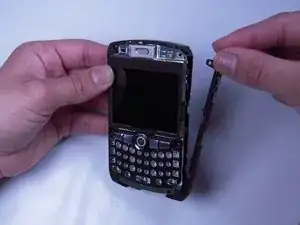

    • Now remove the left and right side panels.

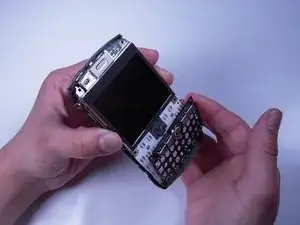

  10. OQVrYGKCQbSnNjHp
    OQVrYGKCQbSnNjHp
    itCNM5bMtLcfYrEn
    GbgcaJqpgdBQCOVP

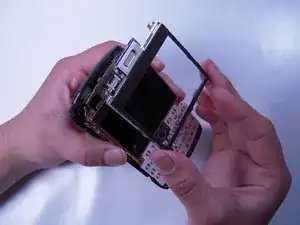

    • Remove the keyboard frame.

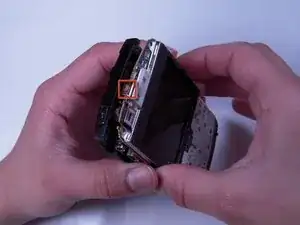

    • Be sure to unhook the screen housing from the motherboard before continuing. Refer to the square indicated in the second picture.

    • Now remove the screen housing.

  11. N2ocCJJg3QVpgtuy

    • Unplug the ribbon cable from the board.

    • The ribbon cable is located at the top left of the phone above the screen.

  12. 2hjkjOI6dErbWivI

    • Insert tool between LCD screen and board.

    • Pry LCD screen from board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
