BlackBerry Curve 8900 Keypad Replacement

Geschrieben von: Renae Bishop
  • Kommentare: 0
BlackBerry Curve 8900 Keypad Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

30 - 40 Minuten

Einleitung

Replacing a defective or faulty keyboard on a BlackBerry Curve 8900.

  1. VFOIkFi2hB5yKOb2

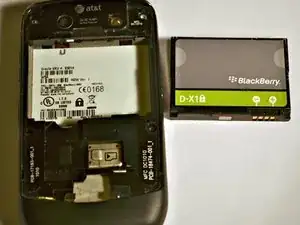

    • Remove the back cover and the battery from the device.

  2. 6OjNLTaAkjfQEJJd

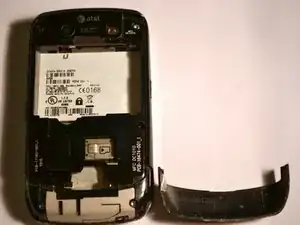

    • 4 screws should be visible. Pry off the lower portion of the back to reveal all 6 screws.

  3. sWXJWvAqtO5HM4h6

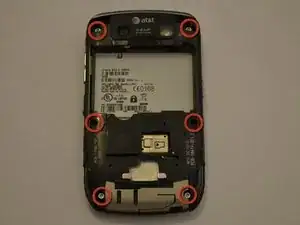

    • Remove all six T6 screws from the midframe.

  4. AshHfCNt2XnF4dWG

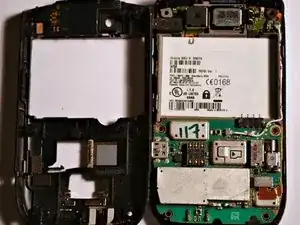

    • Separate the midframe from the rest of the device.

  5. SGblAeI4riCNO4Vg

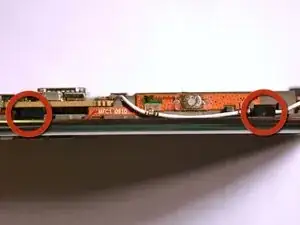

    • Gently pry back the plastic tabs that secure the motherboard to the case.

    • Slowly work your way around the case prying the tabs until the motherboard comes free.

    • Remove the motherboard.

    • The keypad and navigation ball may become loose and fall away from the motherboard.

  6. pSD32FMwbROiNFYo
    pSD32FMwbROiNFYo
    QiF5j6ao2rRC1MpL
    HAQgHQqHIJXYQ3q6

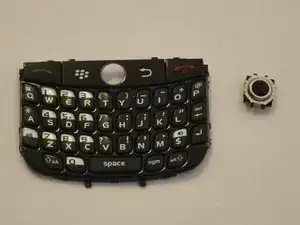

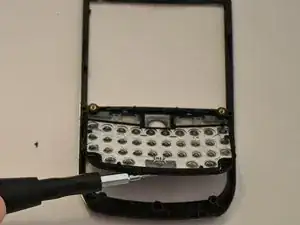

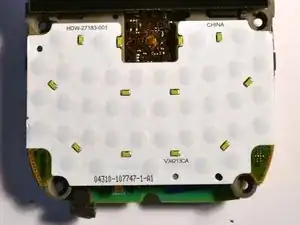

    • Lift the keypad from the motherboard.

    • When replacing the keypad, be sure that the navigation ball is in its original position.

Abschluss

To reassemble your device, follow these instructions in reverse order.
