Einleitung
This device contains a 1230 mAh removable/rechargeable lithium-ion battery. This battery offers a talk time of up to 6.8 hours, standby time of up to 13.4 days, music playback up to 50.2 hours, and video playback up to 6.6 hours. A lithium-ion battery can be very dangerous to work with, especially if it is damaged, so use extreme caution while replacing it. Without a battery your device will not even turn on, so it is important to know how to replace it.
-
-
Power off the device.
-
Press and hold down the power/end button on the phone until phone powers off and the screen goes black.
-
-
-

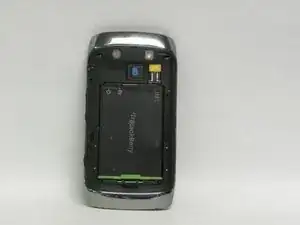

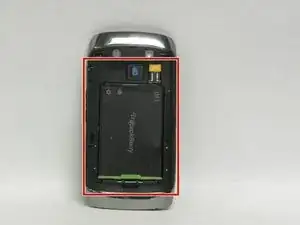

Remove the plastic cover that would normally be on the back of the phone.
-
Press down on the release button, which is located on the bottom of the back side of the phone.
-
Lift up on the plastic covering and remove.
-
-
-

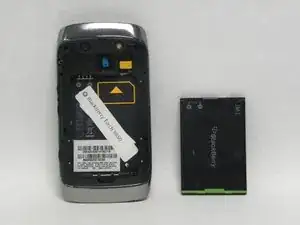

Remove the battery.
-
Once the plastic covering is removed, you can remove the battery.
-
Use your fingers or a plastic spudger to pop the bottom of the battery out of its place by pushing and lifting.
-
Once the bottom of the battery has ejected, you can easily remove the whole battery from the phone with your hands.
-
-
-

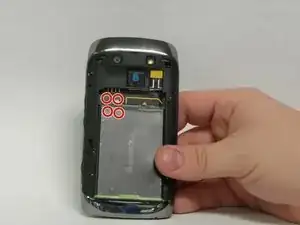

Inserting a new battery.
-
Align the plus and minus signs at the top of the battery compartment with the plus and minus signs at the top of the battery.
-
Push battery into place.
-
Replace the plastic cover by snapping into place.
-
To reassemble your device, follow these instructions in reverse order.
