BlackBerry Tour 9630 LCD Screen Replacement

Geschrieben von: Mia
  • Kommentare: 0
BlackBerry Tour 9630 LCD Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

15 Minuten

Einleitung

If your screen is cracked or damaged, then you will need to replace your screen. Use these step-by-step instructions to replace your BlackBerry Tour 9630 LCD screen.

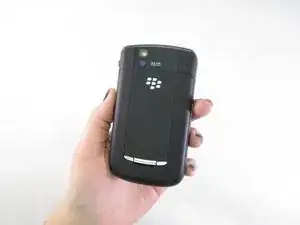

  1. GgYbLg2dBmIVRWVJ
    GgYbLg2dBmIVRWVJ
    OqrfTlhkVI2yAiJs

    • Flip phone over so the back side is facing up.

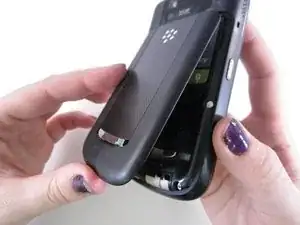

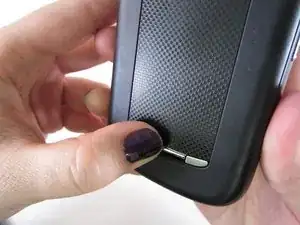

  2. yhSFghavJOOGRAsi
    yhSFghavJOOGRAsi
    HEwvJi5CMeGc4Kyr

    • Push up on the center silver button to release the back cover.

    • Remove the back cover.

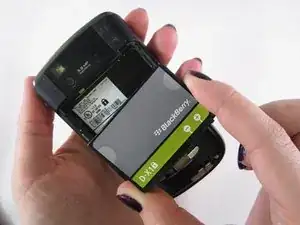

  3. JZadApjerFUFvLEM
    JZadApjerFUFvLEM
    oMuPGDNuAR4UWwh5

    • Grip the battery where the light grey half circles are located and pull up on the battery.

    • Remove the battery.

  4. KDtBkAkvUi6GL2Jm

    • If there is an SD card, press gently on the card and slide up to remove.

    • If there is a SIM card, press gently on the card and slide left to remove.

    • Use the T6 Torx screwdriver to remove the four 8.00mm screws from the back of the phone.

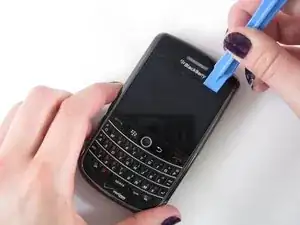

  5. HPIM2Ipx2JcmyXLK
    HPIM2Ipx2JcmyXLK
    G6HQG5tuNMq2GuRd

    • Using the large blue plastic opening tool, pry the top plastic covering off.

    • There is glue holding the top plastic covering. Additional pressure may be needed.

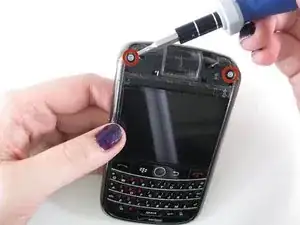

  6. RYxSPWi1KYhUOOkn

    • Use the T6 Torx screwdriver to remove the two 8.00mm screws from the top of the phone.

  7. 4VI1D14iPYfEaeBX

    • Remove the back casing by wiggling it open.

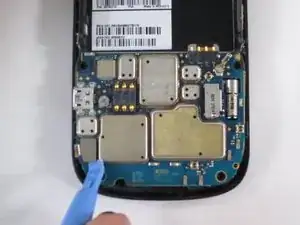

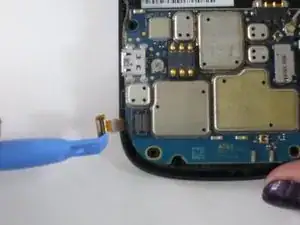

  8. dFayXecwIRBlUttY
    dFayXecwIRBlUttY
    TJJnQlrxuyqXQL6B

    • Using the small plastic opening tool, pry up the pop ribbon cable from the motherboard.

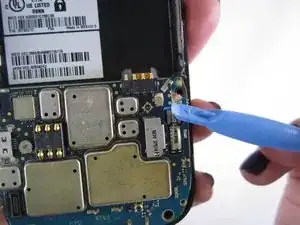

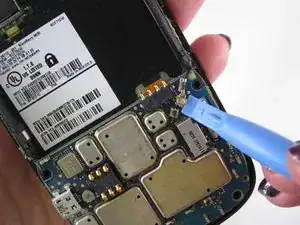

  9. hJ1WOd1D2lGhnNDO
    hJ1WOd1D2lGhnNDO
    KHJqutdmDgF243IF

    • Using the small plastic opening tool, remove the side antenna cable.

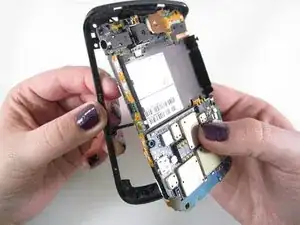

  10. 2HUhu1lqcg1FTXrB

    • Gently push up on the keyboard and snap the front cover off.

    • Once you remove the front cover, the keypad and trackball will be loose.

  11. mXDwZGs2GXVMmSMT

    • Remove the keypad.

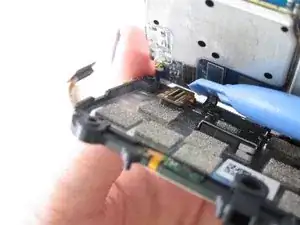

  12. GtJCZCrqEvGPkhPL
    GtJCZCrqEvGPkhPL
    dsvMiVMafGoB1ITq

    • Gently lift the motherboard to expose several ribbon cables.

    • Use the small plastic opening tool to disconnect the orange LCD ribbon from the square end of the ribbon cables.

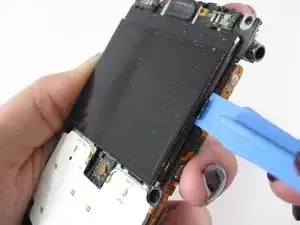

  13. PRRZ4pmCDsXUYE6C

    • Flip the phone over. Using the large plastic opening tool, pry the LCD screen from the motherboard.

    • Replace the LCD screen

    • The LCD screen is held in place with glue.

Abschluss

To reassemble your device, follow these instructions in reverse order.
