BlackBerry Tour 9630 Trackball Replacement

Flip phone over so the back side is facing up.

Push up on the center silver button to release the back cover.

Remove the back cover.

Grip the battery where the light grey half circles are located and pull up on the battery.

Remove the battery.

If there is an SD card, press gently on the card and slide up to remove.

If there is a SIM card, press gently on the card and slide left to remove.

Use the T6 Torx screwdriver to remove the four 8.00mm screws from the back of the phone.

Using the large blue plastic opening tool, pry the top plastic covering off.

Use the T6 Torx screwdriver to remove the two 8.00mm screws from the top of the phone.

Remove the back casing by wiggling it open.

Using the small plastic opening tool, pry up the pop ribbon cable from the motherboard.

Using the small plastic opening tool, remove the side antenna cable.

Gently push up on the keyboard and snap the front cover off.

Remove the keypad.

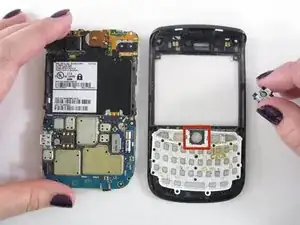

Remove the trackball.
