Einleitung

  1. 4uYFORL3HiExqIif
    4uYFORL3HiExqIif
    ORpFoyds4ySFfOtw
    NLLOai3hhLAPVbQP
    • Before beginning this installation, make sure phone is powered off .

    • Turn phone over to the backside.

    • Press down on the lower portion of the back cover.

    • Slide the lower portion down to remove the cover and reveal the battery.

  2. uACwOSEG4beWixuI
    • Remove the battery from the phone.

  3. VHlVMhuAhoCCg2iN
    VHlVMhuAhoCCg2iN
    XMP3MYCCQEqMjUXV
    • Once the battery is removed, remove the four 9.2 mm screws with the T4 Torx Screwdriver.

  4. AMXWTHceAF1enpFu
    AMXWTHceAF1enpFu
    NUXME2wwYYBJjIDJ
    pqufRc4qqA4REFSu
    • Remove side panels with the Plastic Opening Tool by sliding it along the edge of the panel until you can pry it off with the tool.

  5. qoDaeXhGFckLlHev
    qoDaeXhGFckLlHev
    roWhyfN2WrlSqoFu
    • Remove the back casing using the Plastic Opening Tool

    • Once the back casing is removed the top two buttons are likely to pop out.

  6. HtobQrjHDwSdLaiP
    HtobQrjHDwSdLaiP
    EtAEMCJh2NUVykro
    FbL3tnDN4timmZHN
    • Locate the two 9.2mm screws on the upper inside casing

    • Remove them using the T4 Torx Screwdriver

    • Slide off the front casing once the screws are removed.

    • Trackball will fall out once the casing is removed.

  7. 2NZOChuUoa4J4Rd3
    2NZOChuUoa4J4Rd3
    lIyVisHwH3hWoL2n
    KbODYrjaJVUiulGQ

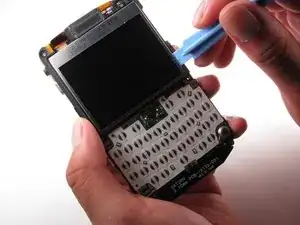

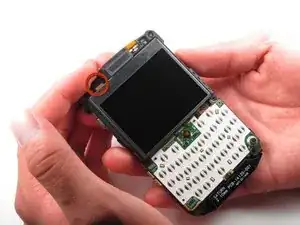

    • Disconnect the tab attached to the interior casing from the LCD Screen by gently pulling the tab up and away from the phone.

    • Use the Plastic Opening Tool to pry the LCD Screen out.

  8. fNHjvEjCNGnTpyg6
    fNHjvEjCNGnTpyg6
    YQyVUqsKKlGFSGVb
    D3WuUkf5Es2HYM4B

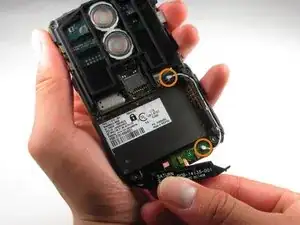

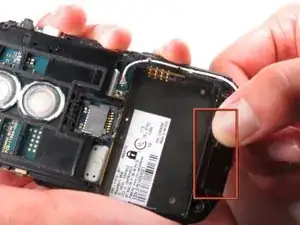

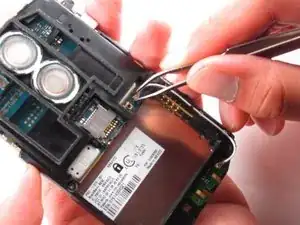

    • Grab and remove the middle bar located on the bottom of the phone.

    • Once the bar is removed, a small wire will be revealed. Remove the wire using your tweezers.

    • There are two places that wire is clipped in. To disconnect the wire, gently pull up on the wire until it pops off of the connector.

  9. 1mACcFwnrHwn2pDL
    1mACcFwnrHwn2pDL
    sCiJHR2MLHHSfBYj
    WXVHVIXEZ4xs2UwT

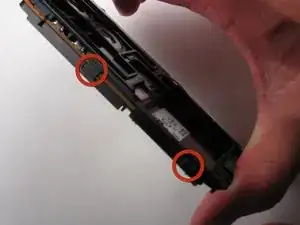

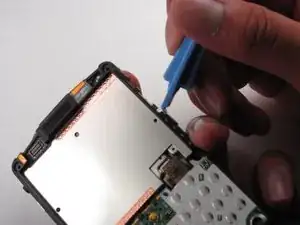

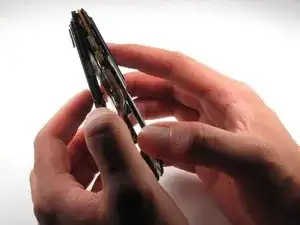

    • Once the wire is removed, locate the six clips located along the phones edges. There are two on each side, and two on the top.

    • Carefully unhook the clips by hand or with the plastic opening tool to allow the back cover to come off.

  10. rrCPoyjpZ34RQvwK
    rrCPoyjpZ34RQvwK
    SXVCP53METRIHY6O

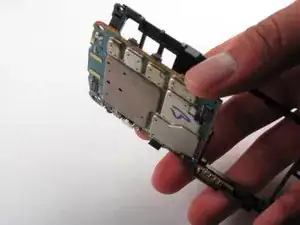

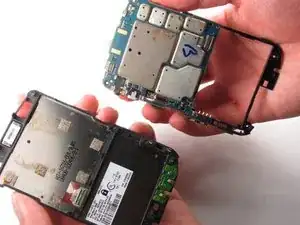

    • With the motherboard revealed, slowly lift it off of the casing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
