BlackBerry Z30 Middle Frame Replacement

Geschrieben von: Hans
  • Kommentare: 0
BlackBerry Z30 Middle Frame Replacement

Schwierigkeitsgrad

Difficult

Schritte

13

Zeitaufwand

30 - 45 Minuten

Einleitung

Guide for the replacement of the middle frame that includes Power Button, Audio Jack and Microphones

  1. AMeCFfS3UOHM1BND

    • Remove the battery cover by grabbing the notch under the bottom speakers and lifting.

  2. AE4iNYLSjZMyolhT

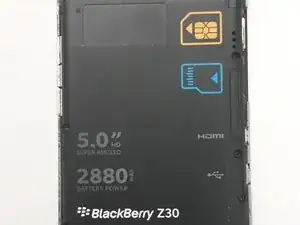

    • Remove the SIM card and the Media SD card by pushing on them.

  3. PQOdU1jAmqQuWIaM
    PQOdU1jAmqQuWIaM
    LIRSrNbDoFdms62X
    UqWGQNq24KLRnDWM

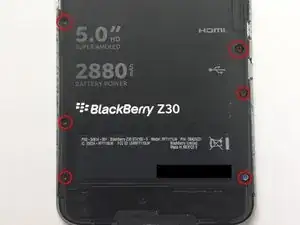

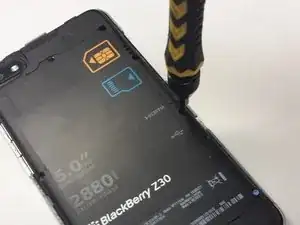

    • Locate and unscrew all 10 T5 screws around the back cover

  4. CQjVTQbppnQxbker
    CQjVTQbppnQxbker
    JFQfrXegtLkvrAe4

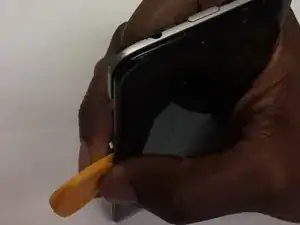

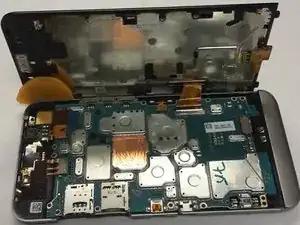

    • Use Plastic opening tools to separate the LCD from the Main body

    • Do NOT remove the screen yet, it is attached with a very fragile ribbon to the main board.

    • Start on the same side of the Audio Jack

  5. X3WplnY5GactpDDD
    X3WplnY5GactpDDD
    vLauLiiRR54SXpKC

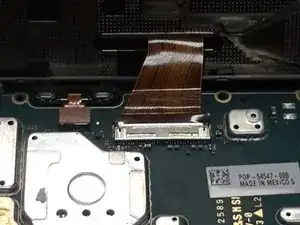

    • Use a plastic tool to carefully switch up the LCD ribbon holder

    • Detach the LCD from the main board

    • When installing the new LCD, make sure the ribbon is inserted to the white line.

  6. rLVuZ1UB43tNEaxm

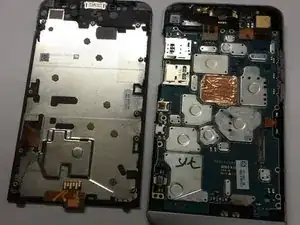

    • You can now detach the LCD Panel from the main frame.

  7. NWMNSDOprXmULkOp

    • With a plastic tool, untie the system board by detaching the ribbons attached to it

    • The battery ribbon is on the bottom right

    • Be gentle when detaching these Ribbons as they are very easy to tear and damage.

  8. DJdEpvRlKwGFQAfu

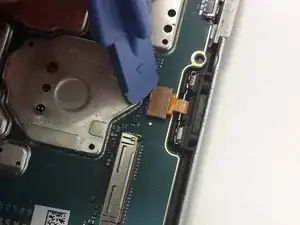

    • Be gentle as any other system board ribbons, they are very easy to damage

  9. PydVAq2AkNQZi5m5

    • Power Button /Audio Jack

    • Flash

    • Rear Facing Camera

  10. LbNRTVItIkbFIVQu

    • Once all Ribbons untied, gently wiggle the system board out of the frame

    • Do not pull hard as there might be a ribbon on the way

  11. USXTuc4VSSwQOrmT
    USXTuc4VSSwQOrmT
    EmVOQag4GFoQZxEp

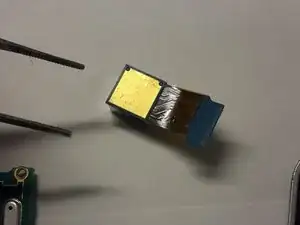

    • Use a pair of pliers to remove the rear facing camera

  12. TTGKcfRDqlEiWElL
    TTGKcfRDqlEiWElL
    LAwmhMSECKHObGfH
    qNlBsOsBdBRCOPtg

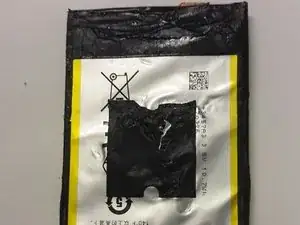

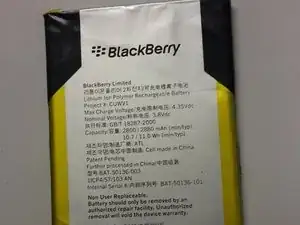

    • If this is the original battery, it might be hold down by VERY strong adhesive on the top, middle and bottom part. Be careful not to damage the battery

    • As pointed in the comments, be careful about the NFC membrane when removing the battery. Use heat to loosen the glue.

  13. 1GlBLys4BXPGtYHt

    • Re-Assemble the unit using the new middle frame.

Abschluss

To reassemble your device, follow these instructions in reverse order.
