BlackMagic ATEM Television Studio Quiet Fan Upgrade

Geschrieben von: Kevin Krautle
  • Kommentare: 4
BlackMagic ATEM Television Studio Quiet Fan Upgrade

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

30 Minuten - 1 Stunde

Einleitung

The BlackMagic ATEM Television Studio Switcher has a terribly bad design with a loud fan. This procedure will help you upgrade your device to make is quiet.

WARNING - THIS WILL VOID YOUR WARRANTY!

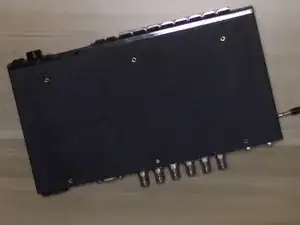

  1. IcAHEHSN6uTINL1R

    • 2 Screws on each side

    • 6 Screws on top

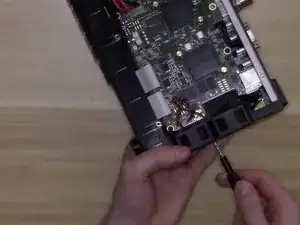

  2. KLnOGuFqIjnL41c4

    • Remove Both Fans

    • 2 - Screws each

    • 1 - Pull cable each

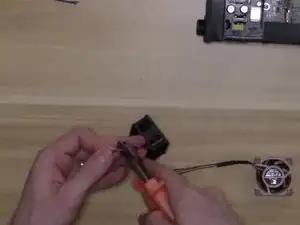

  3. sgWQDwyr14qRbCNw

    • Leave some length to solder with and to reach connector on main board.

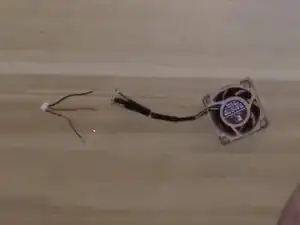

  4. 2IDaUOSsTKI5UfpL

    • Strip Wires, Tin Wires, and prep by adding heat shrink tubing on wires (before shrinking).

  5. GQELCJEHxdPtDvSA
    GQELCJEHxdPtDvSA

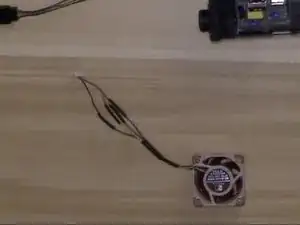

    whUVbGPImReOe6dH

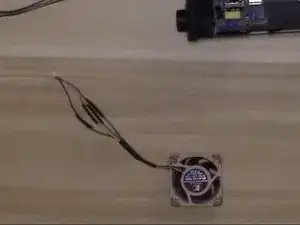

    w1iFKm6cyDkpScVZ

    • For Both Fans

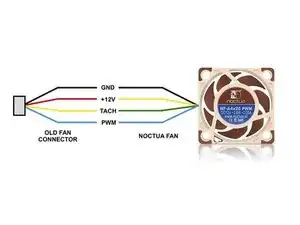

    • Solder the new fan to the old connector using the following pinout.

    • Adjust heat shrink tubing so it covers the solder joints and use heat gun to shrink tubing.

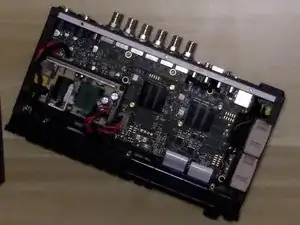

  6. M2QBWylyHu2aeLxo

    • Re-assemble fans to device with fan label facing out.

  7. gOWOFnLjTokPiEBu

    • OPTIONAL - Use Small Round Nose Pliers to break off case grill to make fan even quieter.

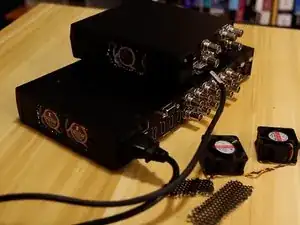

  8. CIZ2yqpj1MsTdlvw

    • Re-Assemble Case

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Kevin Krautle

Mitglied seit: 10/10/16

508 Reputation

4 Kommentare

I have an ATEM Production Studio 4K which had the same issue. This guide was helpful to know how to map the exhaust fan wiring. There are 2 12v heat sync fans that have the same color scheme. I just crimped the wires strait across, and everything worked. I’m now able to live edit without the distraction of a loud switch!

Thank you!!

longears -

Can I have a schematic diagram for this product ?

Jay Makwana -

Awesome video, thanks! Do you have a similar iFixit kit and video for the ATEM Mini Pro?

Al Rodriguez -

Great mod! Did this on my TV Studio HD, nearly non hearable now :)

Andi M -
