BlackMagic Hyperdeck Studio Mini Fan Replacement

Geschrieben von: Kevin Krautle
  • Kommentare: 6
BlackMagic Hyperdeck Studio Mini Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

30 Minuten - 1 Stunde

Einleitung

BlackMagic Hyperdeck Studio Mini has a very loud fan that can be replaced to make the quieter.

WARNING - THIS WILL VOID YOUR WARRANTY!

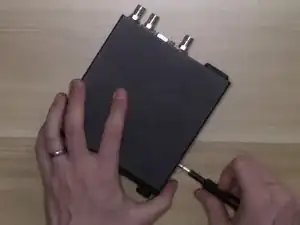

  1. oOAaLEgXEGBtYUKA

    • 4 Screws on each side

  2. AkTHw6nbn4ouU5AR

    • 2 - Screws

    • 1 - Pull cable

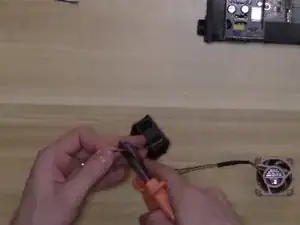

  3. CH4SpeNfcGgCLBXO

    • Leave some length to solder with and to reach connector on main board.

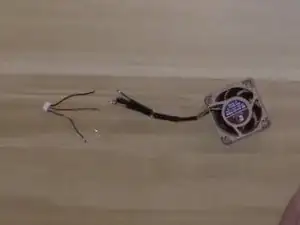

  4. UKjODo1JeHNPbUxd

    • Strip Wires, Tin Wires, and prep by adding heat shrink tubing on wires (before shrinking).

  5. adNVvgu1Ki3XDiKH
    adNVvgu1Ki3XDiKH
    6ECmqGQdAPbee2TG
    McRuvyj2uvuNy5dO

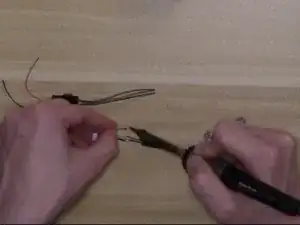

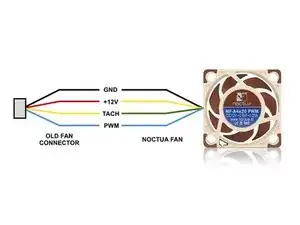

    • Solder the new fan to the old connector using the following pinout.

    • Adjust heat shrink tubing so it covers the solder joints and use heat gun to shrink tubing.

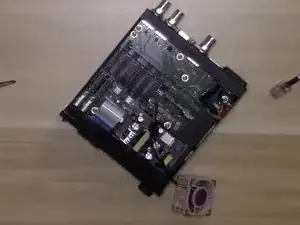

  6. AlAjTiItoJflMTDW
    AlAjTiItoJflMTDW
    VXWjrytIQNYdS6uu

    • Re-assemble fan to device with fan label facing out.

    • OPTIONAL - Use Small Round Nose Pliers to break off case grill to make fan even quieter.

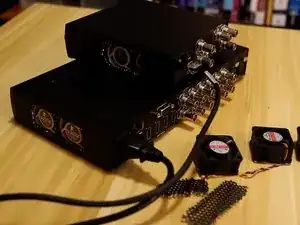

  8. yxLsHg6jT4UfOukS

    • Re-Assemble case.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Kevin Krautle

Mitglied seit: 10/10/16

508 Reputation

6 Kommentare

THANK YOU SO MUCH!!!! This was the perfect solution. The new Noctua fan even came with solderless connectors. The whole job only took 20 minutes. It is now completely silent!

tberntson -

Just replaced mine monitoring the temperature now. As @tberntson mentioned, the fan comes with some Skotchlok connectors and no soldering even required. I can’t believe how quiet the new fan is. Complete night and day difference. Kevin, thanks so much for sharing this.

Adrian Cho -

Hi! any one that have the part number for the Nactua fan with Skotchlok connectors is it NF-A4x20-PWM?

mikaelf -

The connector you need is a Micro JST ZH 1.5mm 4-pin female connector. You can pick them up pre-wired on eBay.

Jamie -

Thank you so much! I soldered it and it works great! So silent now that I can´t hear it at all!

pzacharias -

Nice! Looks like the older Ultrastudio 4K Thunderbolt2 unit uses the JST ZH 3-pin connectors too. (The ZH family is 1.5mm spacing.) I think I'll try a Noctua NF-A4x10 there.

Drew -
