Blackberry 7520 LCD Screen Replacement

Geschrieben von: Nathan
  • Kommentare: 1
Blackberry 7520 LCD Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

20 Minuten

Einleitung

If you are removing or replacing the Blackberry 7520 LCD screen, look here for support.

  1. wXtk63SxmYapuHTb
    wXtk63SxmYapuHTb
    NJPLpHIqbHAZp5ZT

    • Turn the phone upside down.

    • Push down on the black button on the back of the phone to slide the rear panel off.

    • The battery should be visible now.

  2. lLvwIokyvneMuBeU
    lLvwIokyvneMuBeU
    XMoNNvbcxDNSawh2
    XlUEGyAtUutbUFoM

    • Hold the BlackBerry in one hand face-up with the screen facing towards you.

    • Gently smack the phone against your hand to dislodge the battery.

  3. icBG3oIFETFZ3OC2
    icBG3oIFETFZ3OC2
    KXvXXtwIZROKMCX2

    • Use a T6 Torx screwdriver to remove the 6 screws holding the rear of the phone.

  4. ikbiFffNdELPCbA4
    ikbiFffNdELPCbA4
    PQMUvPfMPODETpGP

    • Use a pick or plastic opening tool to push the clips holding the rear away from you.

    • Applying too much pressure could break the plastic clips and permanently damage your Blackberry.

  5. NJrYVEqXCeyWQIUO

    • Repeat the process of unlatching the clips for the top section of the Blackberry.

  6. QQ1IALKb2ymivWWs
    QQ1IALKb2ymivWWs
    tosoBXhB3njNabHC

    • Slide the rear panel forward to reveal the motherboard.

  7. 4FQHwaJFQocRMXAC
    4FQHwaJFQocRMXAC
    LKvkRKngoKYFTKis

    • Remove the indicated screws using a T6 Torx screwdriver.

  8. WFrUMKaaFscHP4mw
    WFrUMKaaFscHP4mw
    GmNM6RYlOiec6oNY

    • Remove the motherboard.

    • Remove the indicated screw using the T6 Torx screwdriver.

  9. fn2aykdgCwLYR2Ga
    fn2aykdgCwLYR2Ga
    5oRwsq2okFokVi2r

    • Pull the metal plate away from the front panel of the cell phone.

  10. ZlAZS1xPKBP516ER

    • Place the faceplate face-down and the interior of the phone face-up, as shown.

  11. rChKKJoHe51kvAHM

    • Turn the phone so that it faces towards you.

  12. lWSTslboaDNX112d

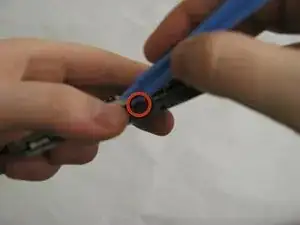

    • Use a pick or other small tool to pop the small plastic clip holding the LCD panel on

  13. MGgeYN1am3ubArJj
    MGgeYN1am3ubArJj
    2cBUDDnS2lLjjsGN

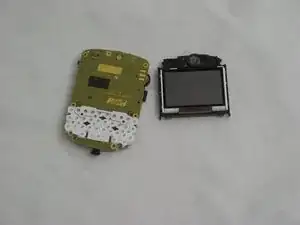

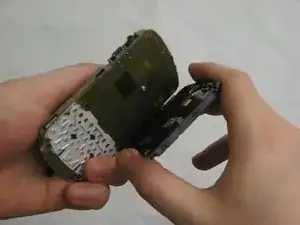

    • Pull the LCD screen off of the board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
