Einleitung

To replace or install a SIM card in your Blackberry 7520, follow this guide.

  1. wXtk63SxmYapuHTb
    wXtk63SxmYapuHTb
    NJPLpHIqbHAZp5ZT
    • Turn the phone upside down.

    • Push down on the black button on the back of the phone to slide the rear panel off.

    • The battery should be visible now.

  2. lLvwIokyvneMuBeU
    lLvwIokyvneMuBeU
    XMoNNvbcxDNSawh2
    XlUEGyAtUutbUFoM
    • Hold the BlackBerry in one hand face-up with the screen facing towards you.

    • Gently smack the phone against your hand to dislodge the battery.

  3. EquZVt2edNXHj2mC
    EquZVt2edNXHj2mC
    4KLNEyko1v1CXsZU
    4GIPQF5vLSGEubkA

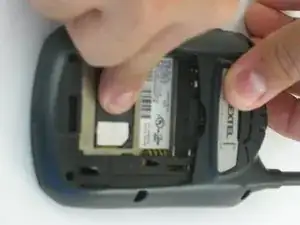

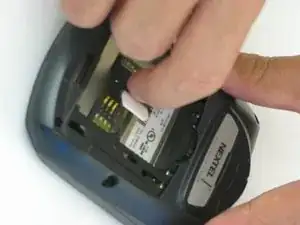

    • Push back on the black slot, then grab hold on top of the black slot and pull back so the SIM card and black slot pull back.

  4. ISECLCJVq2q13KQu
    ISECLCJVq2q13KQu
    W2fIlUdSkAKYGDys

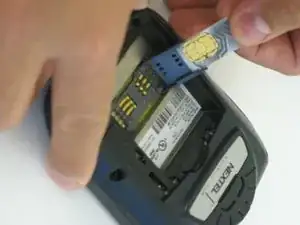

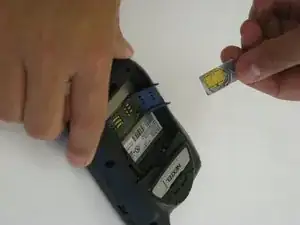

    • Remove the SIM card by sliding it out of the black tray.

    • Insert the replacement SIM card with the gold plated side with lines facing down. Fold the black tray down with the SIM card in and push forward until the tray "slides" into place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
