Blackberry Bold 9000 Antenna Replacement

Geschrieben von: Jacob
  • Kommentare: 0
Blackberry Bold 9000 Antenna Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

5 - 10 Minuten

Einleitung

  1. BE3QDDytOAoMbpPw

    • Place your Blackberry facedown in front of you.

  2. cxGsUxvtgKPogou6

    • Press the cover release button on the bottom of your device. Lift and remove the back cover.

  3. kgPAUXuwiWPp4PVa

    • From the top, use your fingernail to lift the battery out.

  4. UmFktniFeBfeN1kK

    • Remove the SIM card.

  5. EyGoYqfVyrYpZDxU

    • Remove the six 7.0mm Torx screws securing the rear case to the rest of the phone.

  6. gylXlVXkByNnDLmf

    • Use the plastic opening tool to remove the rear case.

  7. vtRxeE2obM2F4kSM

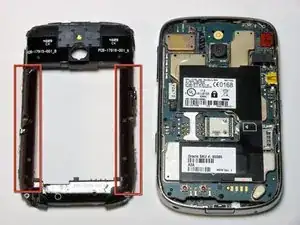

    • The two antennas are built into the rear case. Replace this piece to replace the antenna.

Abschluss

To reassemble your device, follow these instructions in reverse order.
