Blackberry Bold 9000 Trackball Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

15 - 20 Minuten

Einleitung

  1. BE3QDDytOAoMbpPw

    • Place your Blackberry facedown in front of you.

  2. cxGsUxvtgKPogou6

    • Press the cover release button on the bottom of your device. Lift and remove the back cover.

  3. kgPAUXuwiWPp4PVa

    • From the top, use your fingernail to lift the battery out.

  4. UmFktniFeBfeN1kK

    • Remove the SIM card.

  5. EyGoYqfVyrYpZDxU

    • Remove the six 7.0mm Torx screws securing the rear case to the rest of the phone.

  6. gylXlVXkByNnDLmf

    • Use the plastic opening tool to remove the rear case.

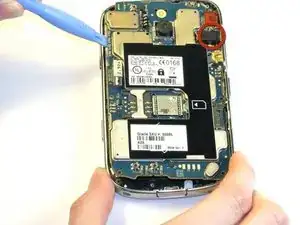

  7. FPs4TXIrrGgyrZTA

    • Using the same plastic opening tool, lift out the motherboard assembly.

    • Remove the motherboard assembly from left to right, using caution near the audio jack on the right side of the device.

    Using a spudger detach the LCD ribbon cable (The red connector) above the audio jack

    devo1909 -

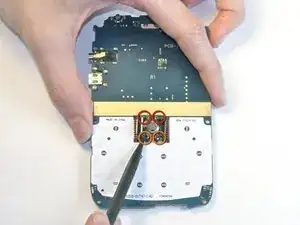

  8. ECY5Sn1w4me6dTmW

    • Using a spudger, pry the top of the metal casing off. There are two pins holding it in place; it should pop off easily.

    • Repeat to the bottom.

    • This step requires pristine dexterity. Try to find a friend with smaller fingers if necessary.

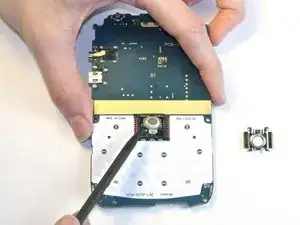

  9. JWb5XMSDBOsIgO4p

    • Lift the trackball out of its socket.

Abschluss

To reassemble your device, follow these instructions in reverse order.
