Blackberry Bold 9900 Power/Volume Button Replacement

Place phone screen down.

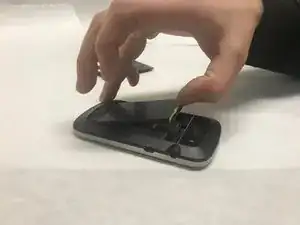

Use your finger to life upward on the battery case.

Pull the cover away from the battery.

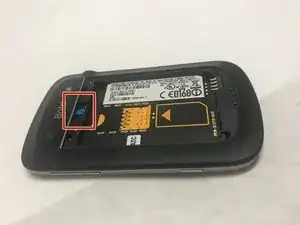

Lift the edge of battery with the green stripe upward to remove battery.

The Mini-SIM card is located inside the red rectangle.

To remove the Mini-SIM Card, push and slide the card inward towards the top of the phone. It will be ejected.

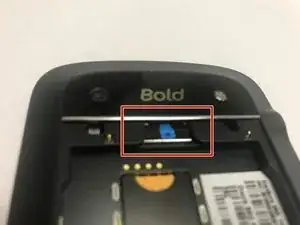

The MicroSD card is located where the red rectangle is shown.

To remove MicroSD card, push the card inward towards the top of the phone then release. The MicroSD card will be ejected.

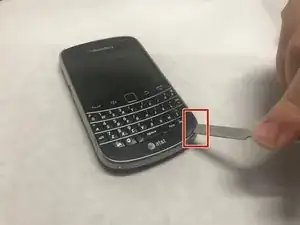

Lift the bezel at the bottom of the phone up and peel it away from the phone.

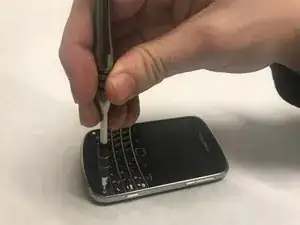

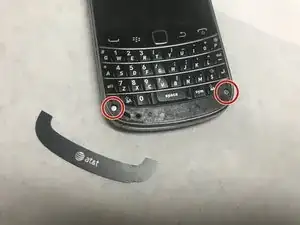

Remove the two exposed screws using the T5 Torx screwdriver.

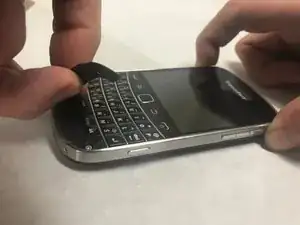

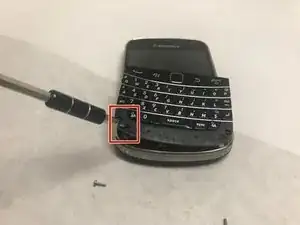

Now lever the keyboard up using the screwdriver in the indicated hole.

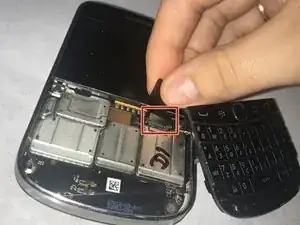

The keyboard is attached via a ribbon cable. Pull the cable up to remove the keyboard.

Using the T5 Torx Screwdriver, remove the four torx screws that are located on the bottom half of the device

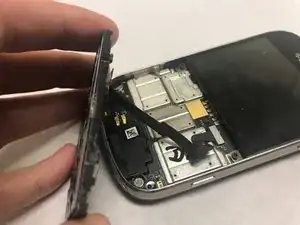

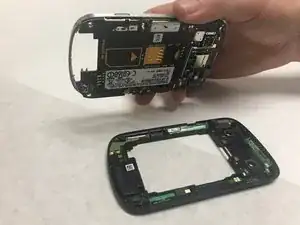

Now, carefully and gently using your fingers, lift and remove the assembly from the back case.

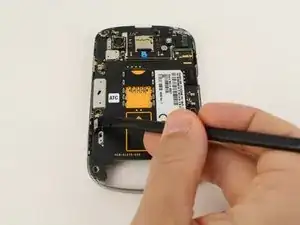

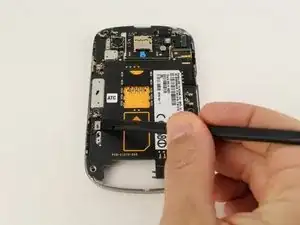

Use the black nylon spudger to pop the press fit connector up from the lower left corner of the motherboard.

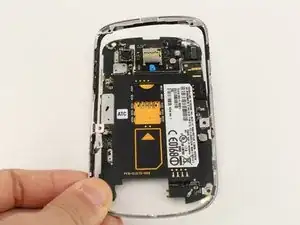

Lift the midframe, which contains the power/volume buttons, off of the motherboard and screen.
