Blackberry Curve 8320 Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 Minuten

Einleitung

This guide will show you how to:

  • Remove the battery
  • Remove the front panel
  • Replace the keyboard

  1. KGKCxSiDMILiBMoo
    KGKCxSiDMILiBMoo
    v2QMDnhs4yXABrkS
    EfHEX2gTmjn4od1L

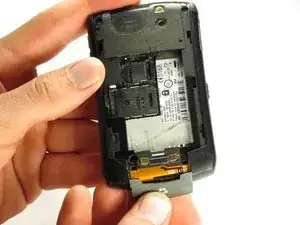

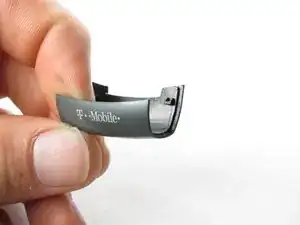

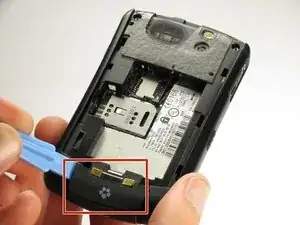

    • Use a plastic opening tool to gently pry the bottom cover loose.

    • Do not use excessive force at risk of damaging the antenna, which is under this casing.

    • Pull the cover from the front of the phone after the back is loose.

  2. a1k3Sf6FEyCAWPJI
    a1k3Sf6FEyCAWPJI
    KCr2GbXLfpGJAUvg

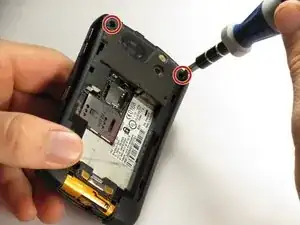

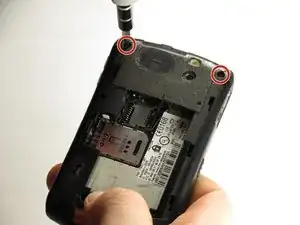

    • Remove the two top screws with a T5 Torx screwdriver.

    • The screws are 8mm long.

  3. vxy4t5IvLlmlOGGV
    vxy4t5IvLlmlOGGV
    LDluN4a3exW4GxCL

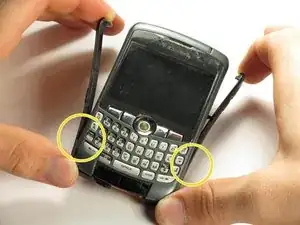

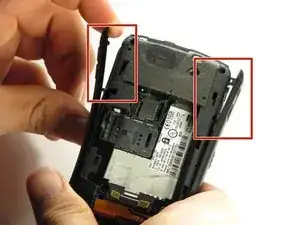

    • Gently pry off the side casings from the top.

    • The side casings cannot be fully removed yet because they are screwed on at the bottom.

    • You will not need to remove the sides on the bottom.

  4. KCUrZevPDgQDfyed

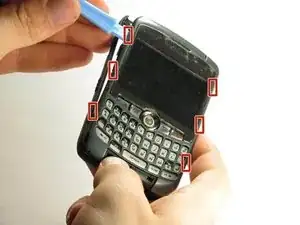

    • Use a plastic opening tool to detach the securing clips holding the the front panel in place.

    • There are six securing clips total.

  5. ZvWBqIBCKswUPDQx

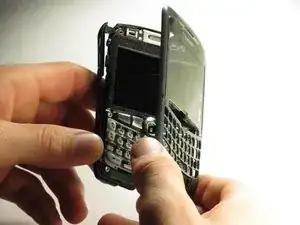

    • Carefully remove the front panel.

    • You may need to apply some force in removing because the front panel is attached to the rest of the device with adhesive.

  6. NKvrYCIgXaCRpUqj
    NKvrYCIgXaCRpUqj
    DeLxMntDU2FdwMff

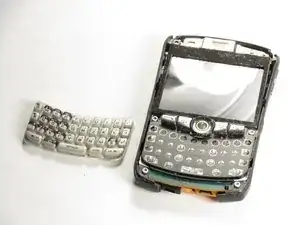

    • Remove the keyboard.

    • Be careful not to bend or fold the keyboard, as it can break easily.

Abschluss

To reassemble your device, follow these instructions in reverse order.
