Blackberry Curve 8320 Speaker Replacement

Geschrieben von: Christopher Aiello
  • Kommentare: 0
Blackberry Curve 8320 Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

15 Minuten

Einleitung

This guide will show you how to:

  • Remove the battery
  • Remove the front panel
  • Replace the speaker

  1. RoZUgjn1vegYPdsF
    RoZUgjn1vegYPdsF
    NWfSjdmwNlkKIqFR

    • Hold the phone with the back facing you.

    • Press the silver tab down and remove the cover.

  2. pjFWOKAtpS1SbumG

    • Pull up on the top edge of the battery to remove it.

  3. KGKCxSiDMILiBMoo
    KGKCxSiDMILiBMoo
    v2QMDnhs4yXABrkS
    EfHEX2gTmjn4od1L

    • Use a plastic opening tool to gently pry the bottom cover loose.

    • Do not use excessive force at risk of damaging the antenna, which is under this casing.

    • Pull the cover from the front of the phone after the back is loose.

  4. a1k3Sf6FEyCAWPJI
    a1k3Sf6FEyCAWPJI
    KCr2GbXLfpGJAUvg

    • Remove the two top screws with a T5 Torx screwdriver.

    • The screws are 8mm long.

  5. vxy4t5IvLlmlOGGV
    vxy4t5IvLlmlOGGV
    LDluN4a3exW4GxCL

    • Gently pry off the side casings from the top.

    • The side casings cannot be fully removed yet because they are screwed on at the bottom.

    • You will not need to remove the sides on the bottom.

  6. KCUrZevPDgQDfyed

    • Use a plastic opening tool to detach the securing clips holding the the front panel in place.

    • There are six securing clips total.

  7. ZvWBqIBCKswUPDQx

    • Carefully remove the front panel.

    • You may need to apply some force in removing because the front panel is attached to the rest of the device with adhesive.

  8. AwaWqwPqHqi1WryT
    AwaWqwPqHqi1WryT
    ES3Yd6APESmbQgs1
    d6EOF1pDrRYTxQPL

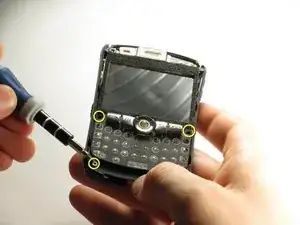

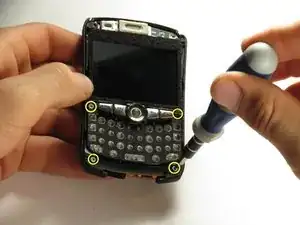

    • Use a T6 Torx screwdriver to remove the four screws located on the corners of the keyboard frame.

    • The screws are 6mm long.

  9. TpkYSvojZQjw1jjk
    TpkYSvojZQjw1jjk
    bksldtOptioGDWQG

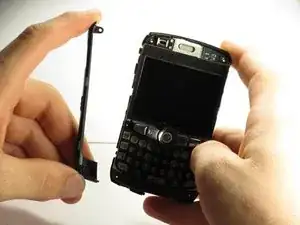

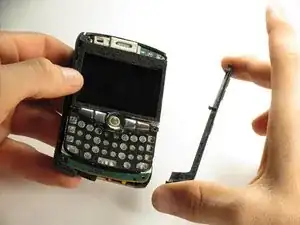

    • After the bottom two screws have been removed the side casings can be removed.

  10. DCHI1BgkX5MVREMO
    DCHI1BgkX5MVREMO
    FDVorCFR5otMZuCA
    wc23bxvCTVxtDfWR

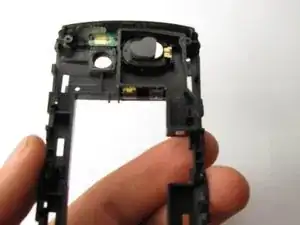

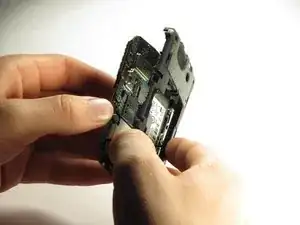

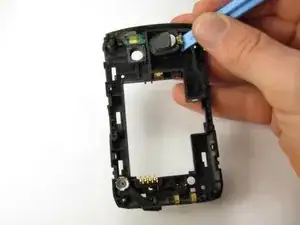

    • Remove the back case.

    • The speaker is located on the back case.

Abschluss

To reassemble your device, follow these instructions in reverse order.
