Einleitung
Werkzeuge
-
-
Hold the phone with the back side facing you.
-
Press down on the silver tab towards the bottom end of the phone.
-
Carefully lift up the back casing to reveal the battery.
-
-
-
Put your finger on the top left corner of the battery and lift the battery up and out of its housing.
-
The phone should now look like this.
-
-
-
Use a plastic opening tool to pry the edges of the bottom cover until it snaps loose.
-
The cover will now pull off easily.
-
-
-
Use a plastic opening tool to pry between the front and back cover.
-
Start prying from wherever it is easiest to separate the silver and black plastic of the covers.
-
Once all the clips have been freed, the front cover will lift away from the phone.
-
-
-
Use a T6 Torx Screwdriver to remove the four corner screws on the keyboard's housing.
-
Lift the keyboard frame away from the device.
-
-
-
Using a plastic opening tool, detach the connector on the LCD screen from the motherboard.
-
There may be some adhesive behind the LCD screen. If needed, pry the LCD screen away from the motherboard using the plastic opening tool.
-

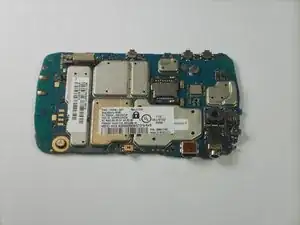

Remove the LCD screen from the motherboard
-
To reassemble your device, follow these instructions in reverse order.
