This guide will help you replace a not working camera on a Blackberry Torch 9800 phone. Making any physical change to this phone will void the warranty.
-
-
Remove the back cover and the battery.
-
Remove the four exposed screws using a T7 screwdriver.
-
Warning: Removing the top right screw (with the blue cover) will void the warranty.
-
-
-

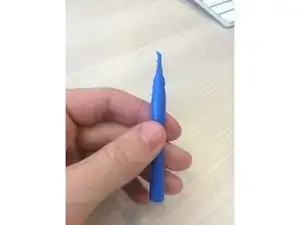

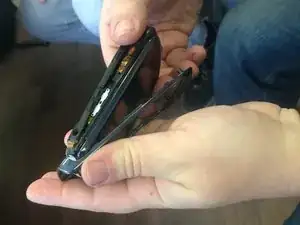

Remove the side trim using the plastic opening tool.
-
When loose, push the top backwards and the bottom forwards to remove.
-
-
-

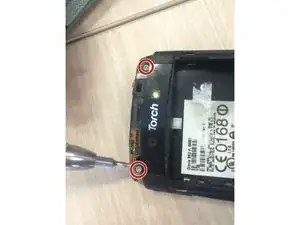

Two new screws have been exposed near the top of the back.
-
Remove the two screws using the T7 screwdriver.
-

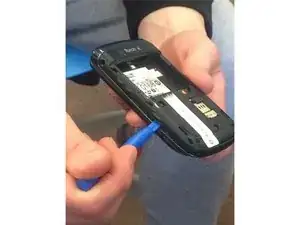

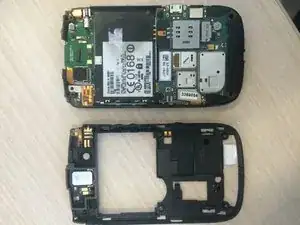

Remove the back panel using the plastic opening tool.
-
-
-

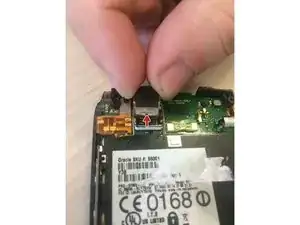

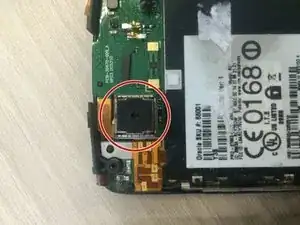

Carefully use flathead screwdriver to free camera sensor.
-
Wiggle on the right and left sides, not the top and bottom sides.
-
-
-

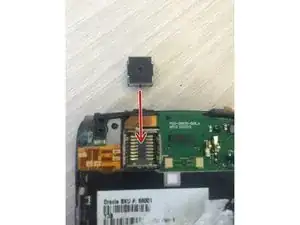

To install the new camera sensor, place in slot. Reassemble phone by doing steps 1-3 in reverse order.
-
To reassemble your device, follow these instructions in reverse order.
