Blackberry Torch 9810 Rear Facing Camera Replacement

Geschrieben von: Jocelyn Adorno

Kommentare: 2

Blackberry Torch 9810 Rear Facing Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

30 Minuten

Einleitung

If your Blackberry Torch smartphone (model 9810) is a broken or has a shattered front-view camera (also known as the selfie camera), use this guide to replace the rear facing camera.

Before starting this project you should completely power off your device, disconnect from any external power source, and carefully inspect your device to ensure that is free of any dirt and debris.

Warning if your screen is cracked or damaged it maybe the cause of a nonfunctional front-view and will need to be replaced instead of the actual camera.

Werkzeuge

Schritt 1

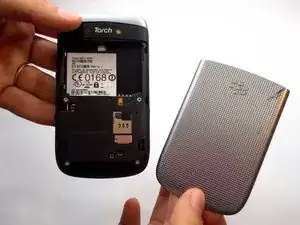

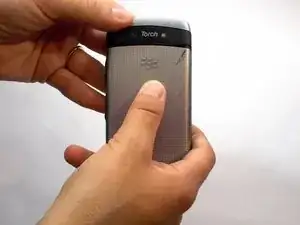

Remove the back cover of the phone

Schritt 2

Remove the battery
Our phone did not come with a battery. This is where it would be located.

Schritt 3

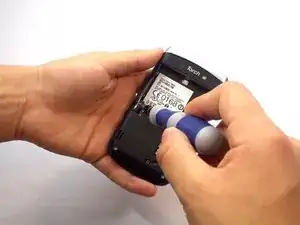

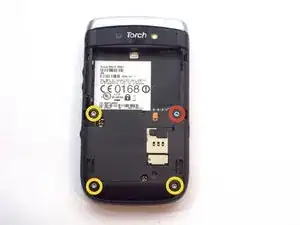

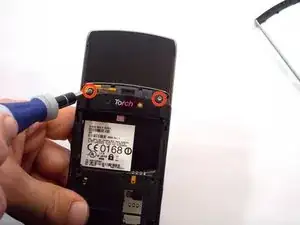

Unscrew the four screws using the T6 screw driver
If you remove the screw in red, you void the warranty!

my blackberry 9810 is failing the slide fibres. what shall I do?

mwinyikai juma - 29/10/20

my blackberry is having problems with displaying on the screen.

mwinyikai juma - 29/10/20

Schritt 4

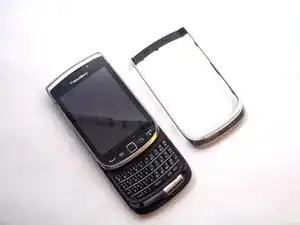

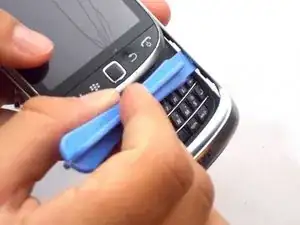

Remove front silver trim by using plastic opening tools and wiggle it off.
(This is a little difficult to remove) Pull the bottom upward and pull the top downward.
