Blackview BV9800 Pro Screen Replacement

Geschrieben von: honakrisi
  • Kommentare: 1
Blackview BV9800 Pro Screen Replacement

Schwierigkeitsgrad

Difficult

Schritte

13

Zeitaufwand

50 Minuten

Einleitung

  1. DxgRBQSgQnwQSDen
    DxgRBQSgQnwQSDen
    OkaGjvGVd54KUkIV
    oM2cSYBNqy4y4o6J

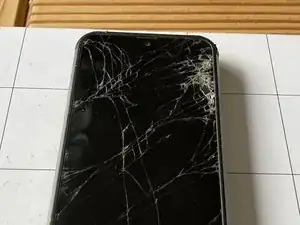

    • Flip the phone over.

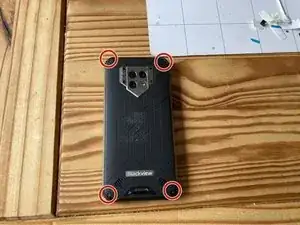

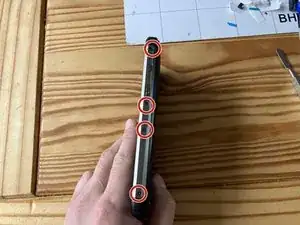

    • Remove the four T5 screws.

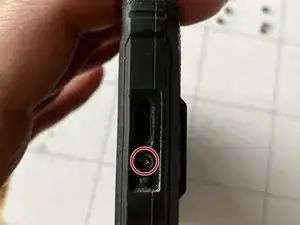

    • Remove the single T5 screw from the bottom, next to the charging port.

    Might want to add importance of magnetic something to keep screws organized. Amazing how many people don't pay attention to the concept of putting screws back into same hole they came out of

    Shelly J Webb -

  2. RqxwJnANhoQK1VNK
    RqxwJnANhoQK1VNK
    eDRs1RIFIP1tLXcp
    hggWu2ZHXMBEcZb1

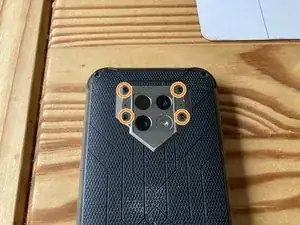

    • Remove the screws from the sides.

    • Remove the screws holding the camera frame.

  3. kZDSAJ6BCN1UOy2W
    kZDSAJ6BCN1UOy2W
    5HgRGIJfnGAv2NmQ
    VksGYs1LU1xRGdEn

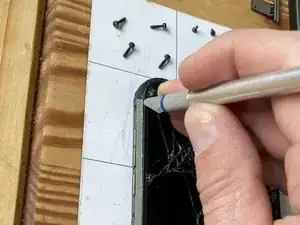

    • Pry out the sim car holder

    • It has a dual sim card holder, but to remove the second tray you need a pin or an iphone sim card opener to push it out.

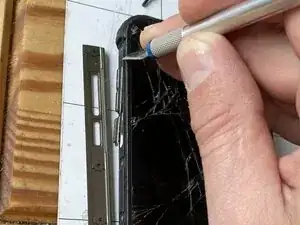

    • Use a spudger or a utility knife to pry off the side bezels.

  4. qSilHEtBW4vlOqrD
    qSilHEtBW4vlOqrD
    HwaFFJSX3eY5XfhL

    • Pry in one corner and separate the back.

  5. q1QZVsMyRVZS6kCF
    q1QZVsMyRVZS6kCF
    tOlrplHI5NnaeUTg
    5OMdUkM251j1P5GK

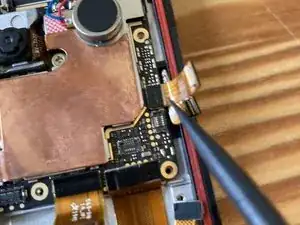

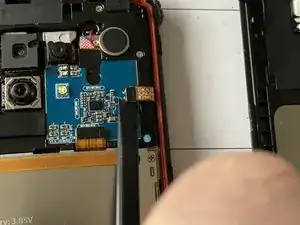

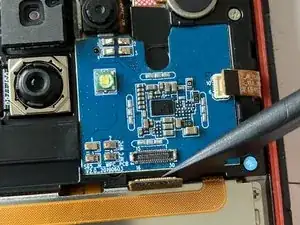

    • Use a plastic spudger to disconnect the flex connectors.

  6. EGH3hfEFVfaAGdsU
    EGH3hfEFVfaAGdsU
    gMBtnpPkcjwBdQ6e
    VQaLBQtkXTFYaXZK

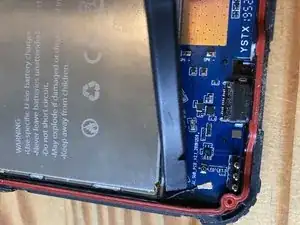

    • Use a plastic spudger to disconnect the flex connector and the antenna

  7. LBWAp1iYyANSNJNM
    LBWAp1iYyANSNJNM
    STCmDmJ4aR2uVOjk
    wihKWgESS2YS4c3x

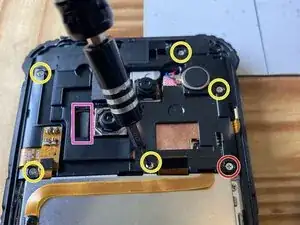

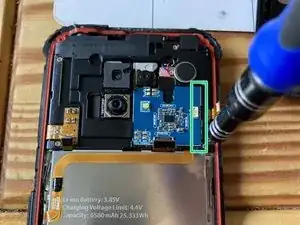

    • Heat up this PCB with either iOpener or a heat gun on low temp (100-120 Celsius) to loosen the adhesive and pry it off from the side.

    • Remove the screws.

    • The last screw is under a tamper-proof sticker

    • Use plastic spudger or tweezers to disconnect the camera flex cable from the top

    • Gently lift up the plasctic cover from the right side. It is still connected to the board below!

    • Disconnect the flex cable

    • Disconnect the antenna

  8. GDPPLHJjZ54Z3oZQ
    GDPPLHJjZ54Z3oZQ
    UdjJ1YHPbxSdhKr2
    DHCU1MHsM3mwmgPW

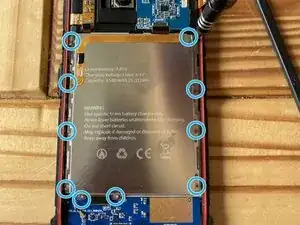

    • Remove the screws from the battery cover

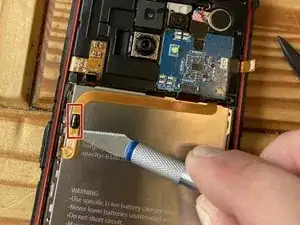

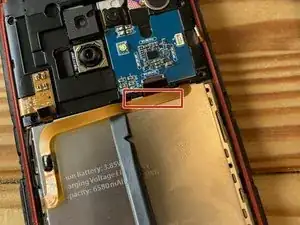

    • Carefully release the ribbon cable from the battery shield. It is stuck down at two points.

  9. ZhQXf6FceYOiZAZv
    ZhQXf6FceYOiZAZv
    6GwkAYjFaExyW4Hx
    qZvTDW43TsJeCnmh

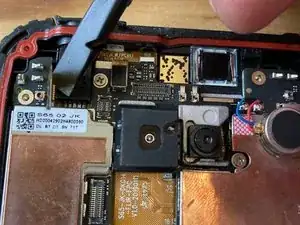

    • Disconnect the flex connectors and remove the battery

  10. NkMJRLOd5pCNnDxB
    NkMJRLOd5pCNnDxB
    F5VEKLkZOfRCrUWW
    sCExGg1ic1ENwYks

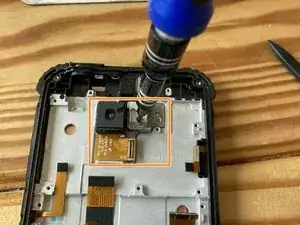

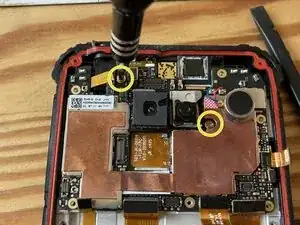

    • Remove two J000 screws

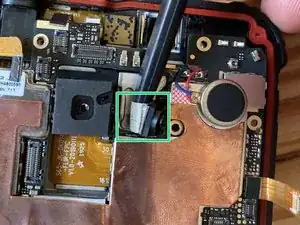

    • Carefully pry up the camera. Heat from the glass side if necessary.

    • Unscrew and remove the camera assembly

  11. IgdHoM1wRwNf2LPp
    IgdHoM1wRwNf2LPp
    wryHpMEBvSKilsJ5
    v2JqWsiVWLWqJ5WU

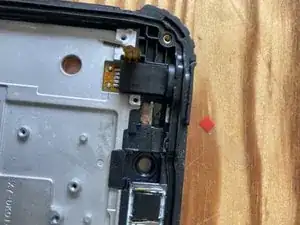

    • Heat the light sensor from both sides to loosen the adhesive and gently pry them out of their sockets

    • Using tweezers slowly and carefully lift out the light sensor

  12. tHPC2RSnXioaNajT
    tHPC2RSnXioaNajT
    muHNLjhjgvQ2vixM
    QCsMkKVkmCQnZLVv

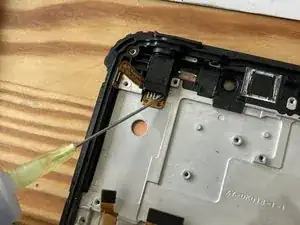

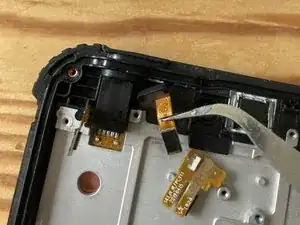

    • Use some isopropyl alcohol if necessary to loosen the glue further on the audio jack

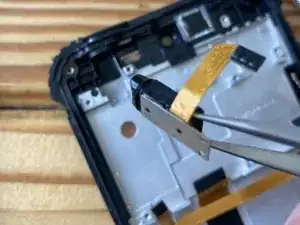

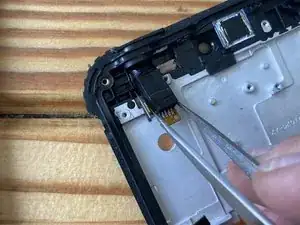

    • Grab it with strong tweezers and wiggle from side to side and upwards until it comes out. Heat further if necessary.

    • Lift it out and transfer to the new screen.

  13. XWkhFuHX1OAIvodP
    XWkhFuHX1OAIvodP
    xHpwMYU6WhIadGV4

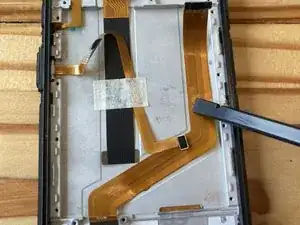

    • Gently peel the flex cable u p and transfer to the new assembly.

    • Heat it up if the adhesive is too strong.

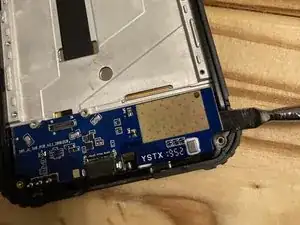

    • Heat up and pry up the bottom PCB (charging port) and transfer to the new screen.

Abschluss

To reassemble your device, follow these instructions in reverse order.
