Blossom Ultrasonic Essential Oil Diffuser ARM-510GY Fan Replacement

Geschrieben von: Muniira Mohamoud
  • Kommentare: 0
Blossom Ultrasonic Essential Oil Diffuser ARM-510GY Fan Replacement

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

30 Minuten

Einleitung

A diffuser's fan and battery are common faults in a diffuser breaking down. The fan keeps the internals of the device, like the motherboard, from overheating. In this guide, we replace a fan from a Blossom Ultrasonic Essential Oil Diffuser ARM-510GY.

Before disassembling the diffuser, make sure there is no oil or water left in the diffuser and make sure the diffuser is unplugged.

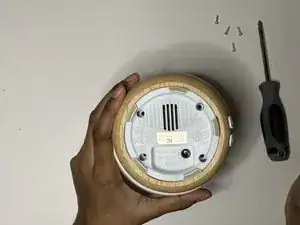

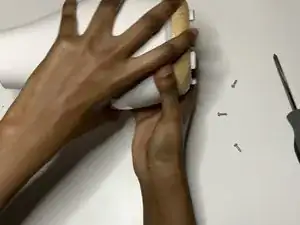

  1. hSfCgfQ6vCcCkOVb
    hSfCgfQ6vCcCkOVb
    nMiAyBt3rU3ei4eS
    pPPdUmJSJRS1uEwy

    • Make sure the diffuser is not plugged into a socket and that there is no water or oil near or in the diffuser before beginning the guide.

    • Use a Phillips #2 screwdriver to remove the four 8 mm screws on the bottom of the diffuser.

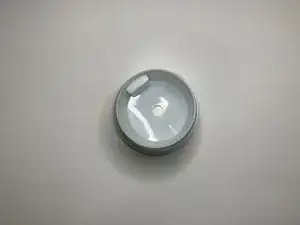

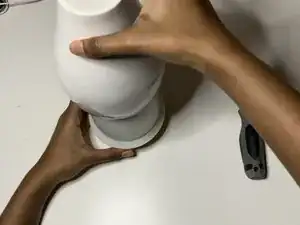

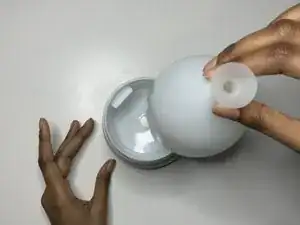

  2. aanTaowZGiQxQLHd
    aanTaowZGiQxQLHd
    UZxSy4kdx2lcQqcr
    JIYtLpVkpvqZnXZI

    • Lift the ceramic top of the oil diffuser.

    • Then lift off the plastic top off the diffuser.

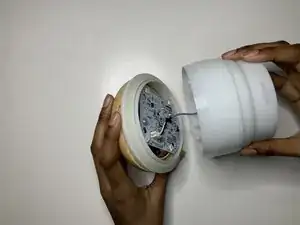

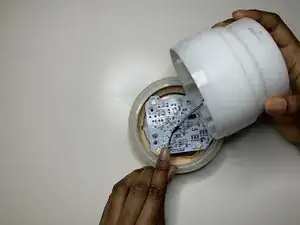

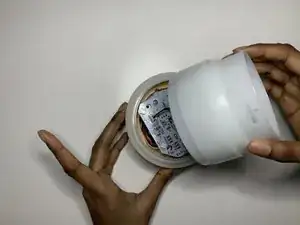

  3. 1wXF1TIZgyCURlXs
    1wXF1TIZgyCURlXs
    dEvCVImybfpHUpPN
    oALmfwyOmPeNNb23

    • Lift the last plastic lid.

    • You will see a circuit board, and there will be a cord connecting it to the circuit board.

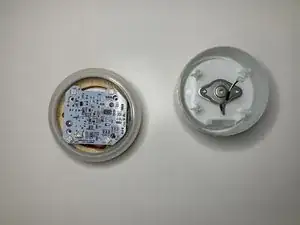

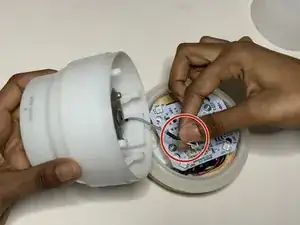

  4. ALDDSiSlvFQFwaUJ
    ALDDSiSlvFQFwaUJ
    BxVJxsT43EZAxQGV

    • Gently unplug the cord from the circuit board.

    • Place the plastic lid somewhere safe on the a flat surface.

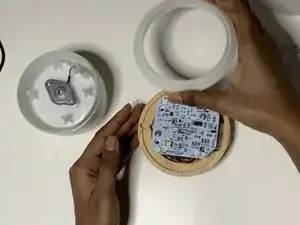

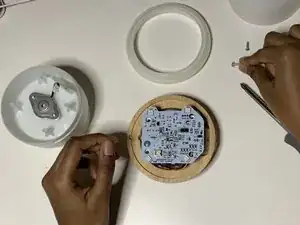

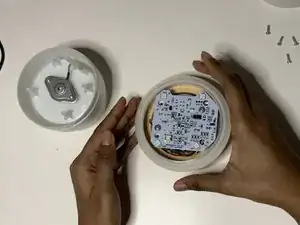

  5. iEukKFT4sZPNGbWM
    iEukKFT4sZPNGbWM
    RTLLX5MRxYyhRhsO
    LubBOAhZXM1HjPvG

    • Remove the plastic ring and place somewhere safe on a flat surface.

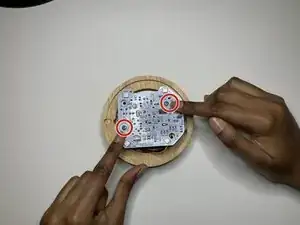

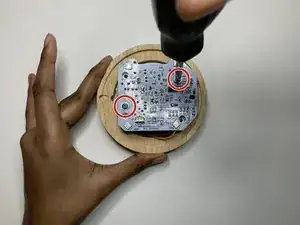

  6. CN6GL6OQVOJsFMlW
    CN6GL6OQVOJsFMlW
    suDGRk242kEoQlql
    1KnY2jFENdxGPuA3

    • Remove two Truss head 4 mm screws with a Phillips #2 screwdriver and place safely nearby.

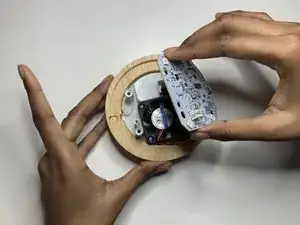

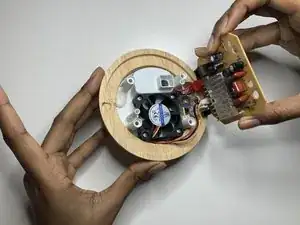

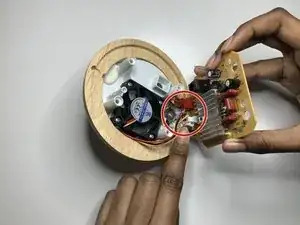

  7. Wr3yyhI2nCSgZRpq
    Wr3yyhI2nCSgZRpq
    BVGmfXjOwq2lV43f
    BKCDem35IAFlfQRU

    • Gently lift the circuit board onto it's side

    • The white connector plugs the fan into the circuit board.

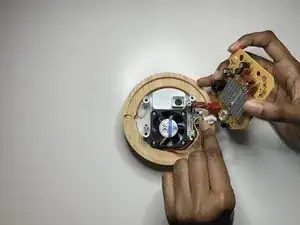

  8. GWhhsQeSp1UjaRNR
    GWhhsQeSp1UjaRNR
    ieIUgbLZUMKVCMKp

    • Unplug the white connector.

    • There are four #M1 6 mm Phillips pan head screws holding down the fan.

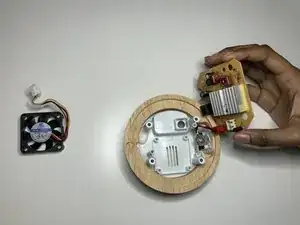

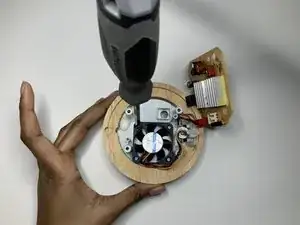

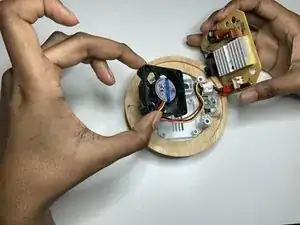

  9. YmR4QMMRXvsHjwpJ
    YmR4QMMRXvsHjwpJ
    aBPXdvGEpFKDlLWU
    VWXmgTAR1BgnHJGu

    • Remove the #M1 6 mm screws with a Phillips #2 screwdriver while holding down the fan.

    • Gently lift the fan and place the fan someplace safe on the flat surface.

Abschluss

To reassemble your device, follow these instructions in reverse order.
