Einleitung
The camera may need to be replaced if you are taking pictures and the pictures turn our black or you are receiving an error message when accessing the camera. Be aware that there may be glue under some components.
-
-
Using a Phillips #000 screwdriver, remove the 3mm screws. Be sure to do this for the top and bottom of the phone.
-
-
-
Remove SIM card tray with paperclip or SIM card tray removal tool.
-
Push down on the phone beside the camera and up on the backplate with your thumbs to remove the back plate. Remove adhesive if necessary.
-
-
-
Place the plastic opening tool in the highlighted indent, and push up on the battery to remove it.
-
-
-
Use a Phillips #000 screwdriver to remove two black 4.0mm screws.
-
Use a Phillips #000 screwdriver to remove 2 silver 4.0mm screws
-

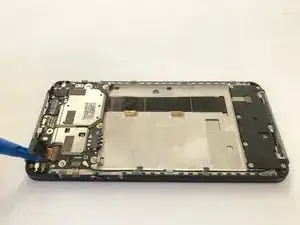

Remove the plastic cover along the top by tugging on it on the corner as shown.
-
To reassemble your device, follow these instructions in reverse order.
