Blu Grand M Vibrator Replacement

Geschrieben von: Cameron Retzlaff

Kommentare: 1

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

Keine Schätzung

Einleitung

If your phone does not vibrate, you should replace the vibrator. You will need to follow multiple prerequisite guides in order to complete this repair.

Werkzeuge

Schritt 1

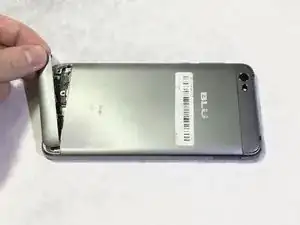

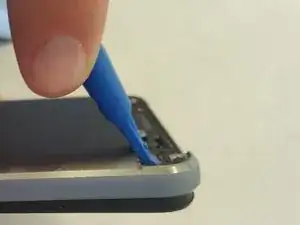

Remove the two plastic plates with a plastic opening tool.

Schritt 2

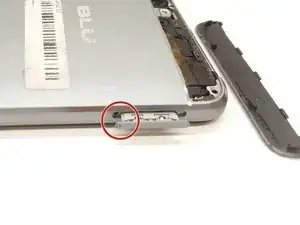

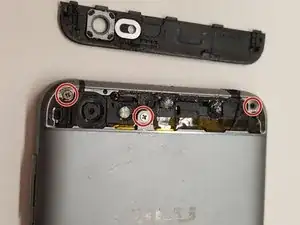

Using a Phillips #000 screwdriver, remove the 3mm screws. Be sure to do this for the top and bottom of the phone.

Schritt 3

Remove SIM card tray with paperclip or SIM card tray removal tool.
Push down on the phone beside the camera and up on the backplate with your thumbs to remove the back plate. Remove adhesive if necessary.

Schritt 4

There is a patch of adhesive underneath the battery, which can make it difficult to remove.

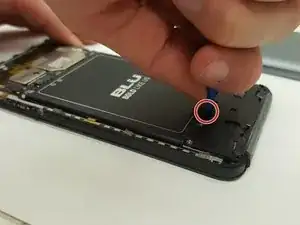

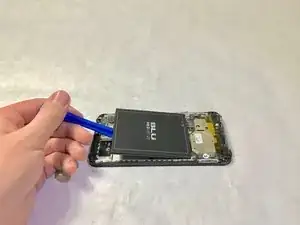

Place the plastic opening tool in the highlighted indent, and push up on the battery to remove it.

I have agey grand m dual sim phone where can i ordre a battery for it?

2200_

mariaholstein - 03/05/19

Schritt 5

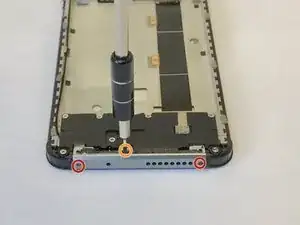

Remove the exterior cover with a Torx 2 screwdriver, to remove two 3.0mm screws.
Remove the 4.0mm screw with a Phillips #000 screwdriver.
Using the blue plastic opening tool, remove the exterior cover.

Schritt 6

Use a Phillips #000 screwdriver to remove each of the four 1.5mm screws.
Use a Phillips #000 screwdriver to remove each of the three 3.0mm screws.

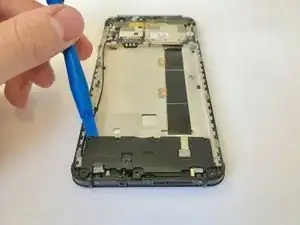

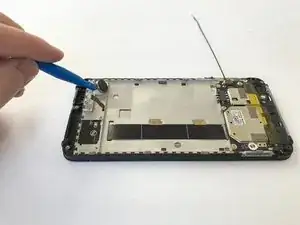

Use the plastic opening tool to remove the speaker.

Schritt 7

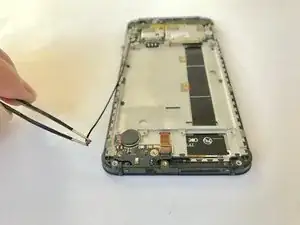

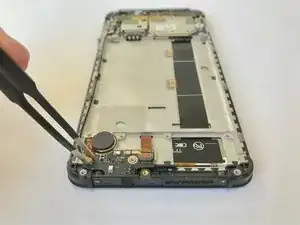

Disconnect the black wire with a pair of tweezers.
The black wire can swivel out of the way to easily access the next microphone.

Schritt 8

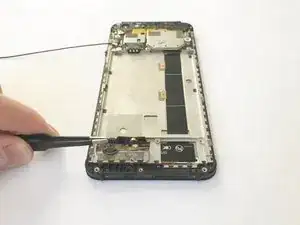

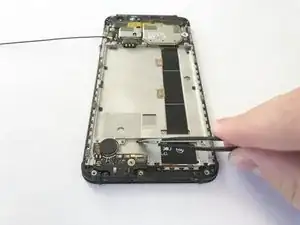

Use a pair of tweezers to remove the orange data cable as shown.

Schritt 9

There will be glue holding the wires down, and they can be glued back in place after.

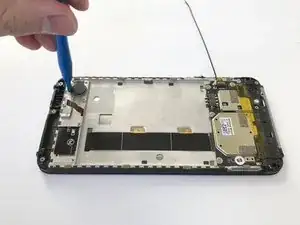

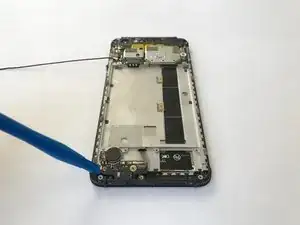

Use the plastic opening tool to lift the microphone out of place.
Use a pair of tweezers to lift the microphone out of the phone.
