Blu Studio 5.5 S Speaker Replacement

Geschrieben von: Cody Dyl
  • Kommentare: 7
Blu Studio 5.5 S Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

5 Minuten

Einleitung

This guide will describe how to take apart the Blu Studio 5.5 S to access the phone's speaker.

  1. wQNKM3QyHUQI2Uq2

    • In order to remove the back case, start by flipping the phone to the back side and look at it from the top.

  2. Q6dXQL5elYocZyOE
    Q6dXQL5elYocZyOE
    NOKXT4m2ESWjVBtr
    DfT1o6IChxEOjr5I

    • Place your finger in the small notch on the left side of the charging port (facing from the back).

    • Once your finger is in the notch, pull the back case towards yourself to remove it.

    the phone i purchased does not have a notch that you described and the camera lens is in the middle and the flash is beneath

    DAVID A WALKER -

    it is impossible to open without damaging case (which I already did) . why don't these idiots provide a usable manual with their product? we aren't all mind readers

    DAVID A WALKER -

  3. 1GberLKfKIT32rEy
    1GberLKfKIT32rEy
    NpERRCCyOHaFDbAo
    XRn2etBW43SOOr6b

    • Once the back case is removed, locate the battery. It is the large brick embedded in the phone. It has BLU Products, a caution statement, and a barcode on it.

    • Insert your finger into the notch near the lower left of the battery, apply pressure and lift up.

    put thewholeentire battery in garbage and it will charge up ur battery and it worked perfectly me contact me at 216-564-1274 if anything else happends

    NANA -

    Put battery in garbage? ? What kind??? My trash?? Help

    rocky14 -

    i try to take it out to reset the phone now it is not coming back on help please

    tiffanymorris52 -

    I need a new battery for my blue phone made in 2016. Somebody can help

    Placide -

    Where can i buy a new battery for this model? I’m from Philippines. Kindly reply, thank you.

    Aika Bertis -

  4. joMPywfhTuUEWRJm
    joMPywfhTuUEWRJm
    MBExUVOOhMQeNffN
    bgVpsAf3thjnobrf

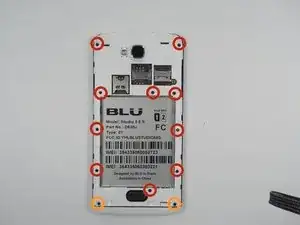

    • The speaker is located behind the inner back case. Using a Phillips #0 screwdriver, unscrew the 10, 7mm screws.

    • Using the Phillips #00 screwdriver, unscrew the two, 10mm screws at the bottom.

  5. VAAlXoTcaTcoTEvE

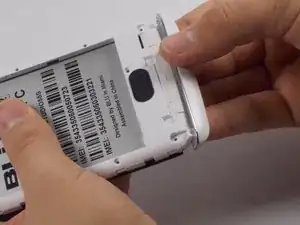

    • Apply pressure and pop off the bottom aesthetic case, being careful not to break it.

  6. KAwcXieolDaCJXQ3
    KAwcXieolDaCJXQ3
    VvNq3bGyjRZEhHpS
    flUtLkmtgQGvasiD

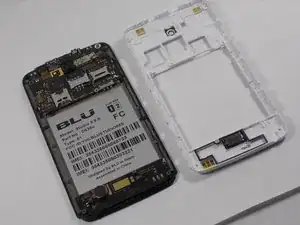

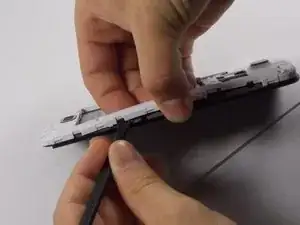

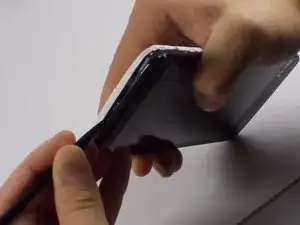

    • Use the Spudger to pop the inner back casing off. Do this by lightly raising the side of the battery housing, then sliding the Spudger around the case.

    • Pick up the inner back case and flip it over.

  7. PnQyPPmYtYUEgxWk
    PnQyPPmYtYUEgxWk
    eoYSnlAEYnALP2dV
    ikWK5KuJuR4GjGwF

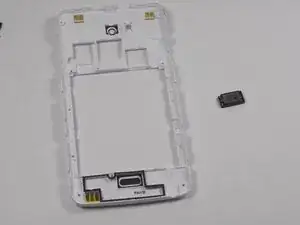

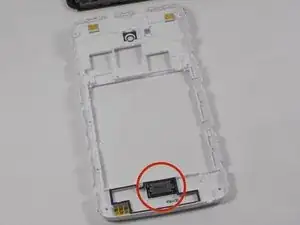

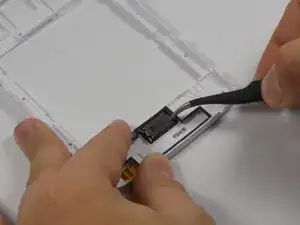

    • The speaker is located on the bottom of the back inner case. To remove it, use a pair of angled tweezers.

    • Use the tweezers to remove the speaker off of the casing.

    • Only put the tweezers in enough to gain leverage.

Abschluss

To reassemble your device, follow these instructions in reverse order.
