The sub PCBA on the BLU studio 5.5 holds the charging port and connects to both the speaker and motherboard assembly so it holds a major role in many functionalities that you seek in your mobile device. This guide will demonstrate step by step how to remove and replace this crucial component.
Werkzeuge
-
-

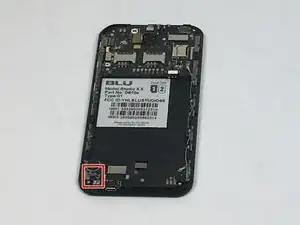

Locate the notch to remove the back panel at the lower left corner of the panel.
-

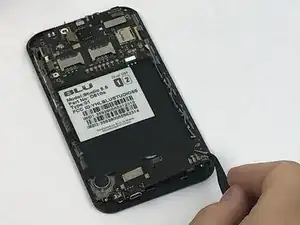

Insert the plastic opening tool or a fingernail into the notch.
-
Apply force upwards until back panel becomes loosened.
-
-
-
Insert a plastic opening tool or your fingernail into the notch and apply force upwards until the battery is loosened.
-
Remove the battery and set aside.
-
-
-
Locate all twelve screws along the back panel:
-
Seven 5mm screws.
-
Five 3.5mm screws.
-

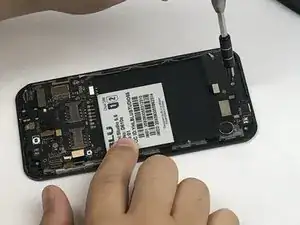

Using a Phillips #000 screwdriver, remove all twelve screws.
-
-
-
Now that all the screws have been removed, use a plastic opening tool to carefully pry at each of the corners until loosened.
-

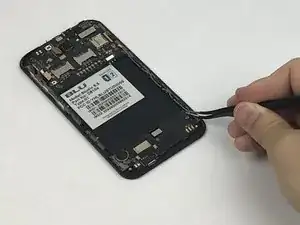

Place the plastic opening tool inside the loosened panel and gently push upwards and move along the phone to remove the back panel.
-
Remove the panel as if you were turning the page of a book.
-
-
-

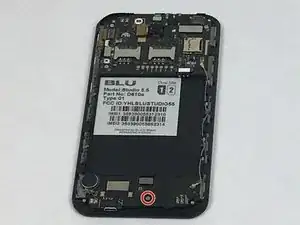

Locate the screw holding down the sub PCBA.
-
Remove the screw using the Phillips #000 screwdriver.
-
-
-

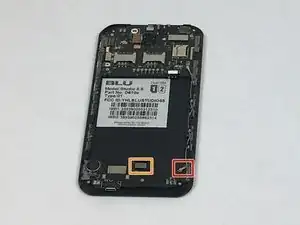

Locate the gold plated cable connecting the sub PCBA to the motherboard.
-
Locate the flex cable connector just above the sub PCBA screw.
-

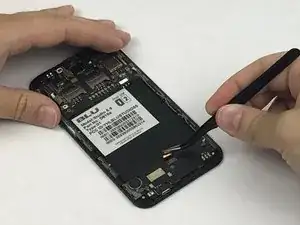

Using tweezers, detach both cables from the sub PCBA.
-
To reassemble your device, follow these instructions in reverse order.
