Body Panel Removal

Geschrieben von: Sam Gustafson
  • Kommentare: 0
Body Panel Removal

Schwierigkeitsgrad

Difficult

Schritte

15

Zeitaufwand

20 Minuten

Einleitung

This guide shows how to remove the body panels of the Pentax MZ-S. This is useful to troubleshoot basic control malfunctions and is also the starting point of more in depth repairs.

  1. nrFIAZKufxVD3cQS

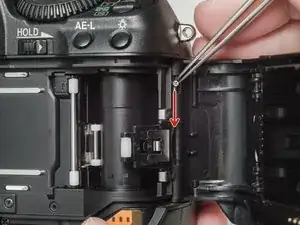

    • Push down the latch to release the film door.

  2. WmaqIpCbXyXjfaFK
    WmaqIpCbXyXjfaFK
    3MNFDKVuEm6fkKQJ
    FSUvVvV2KMcpaLoq

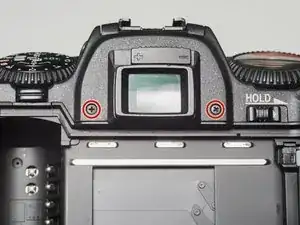

    • Remove two 7.5 mm #00 screws.

    • Remove one 9.0 mm #00 screw.

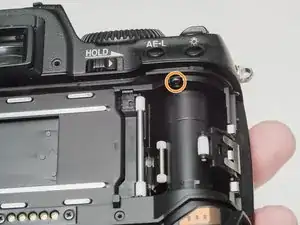

    • Remove one 13.5 mm #00 screw from inside the battery compartment.

  3. ARErbhLaDZLsHNur
    ARErbhLaDZLsHNur
    KRYoT2GRAmLhMIyX
    Si1BeE1GrR5KKWJm

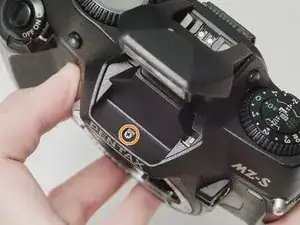

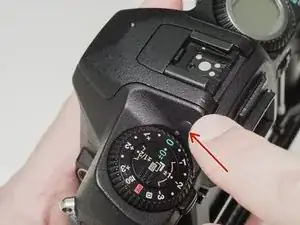

    • Push the button to pop up the flash.

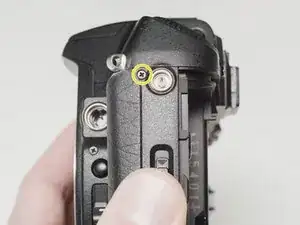

    • Remove one 3.5 mm #00 screw.

    • Remove one 5.5 mm #00 screw.

  4. CTrkEcCILGrCXkJ2

    • Carefully lift the top cover away from the body to access wired connections.

    • The top cover is still connected in several locations.

  5. 1nkNeTyCiA24OyKN
    1nkNeTyCiA24OyKN
    NxBPcIppF4mVjLpj

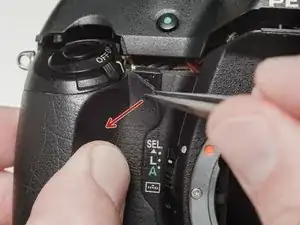

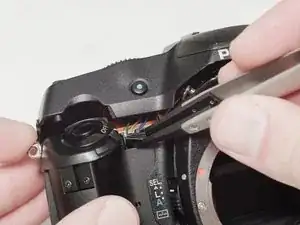

    • Peel back the corner of the rubber grip.

    • Remove the small plastic cover.

    • Be careful not to short the wires before the flash capacitors have been properly discharged.

  6. tbrArotaUPgo2Ekq

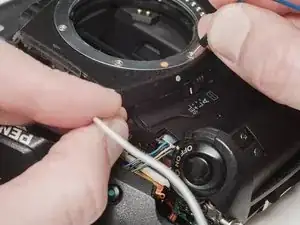

    • Use a 1kΩ-10kΩ high power resistor to discharge the capacitor. Place the resistor between the blue wire, exposed in the previous step, and ground.

    • The flash capacitors store energy at a very high voltage. Failing to discharge the capacitors properly could result in personal injury and/or damage to the camera.

  7. YdycH1sEqaJCoOjL

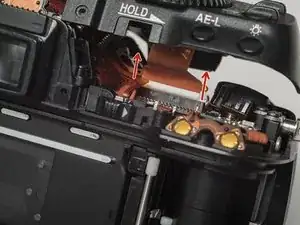

    • Carefully lift the sides of the white latch.

    • Hold the flex PCB on the camera body in place as you lift to prevent damaging the flex.

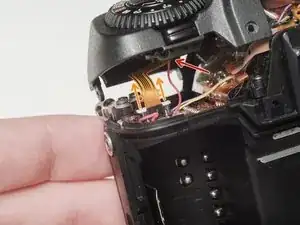

  8. 3uAZsfEVbYVPPBmZ

    • Desolder the red wire.

    • Carefully lift the sides of the white latch.

    • Hold the flex PCB on the camera body in place as you lift to prevent damaging the flex.

  9. WyHHmqDh1UjeRCvX
    WyHHmqDh1UjeRCvX
    OCEScxHQboYDoSSH

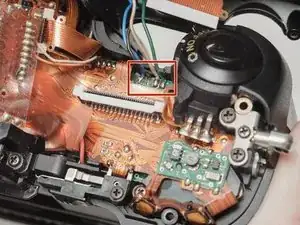

    • Desolder blue, black, brown and green wires.

    • Remove the loose shim washer if present.

  10. bvJQ2WLlb5c4daYO
    bvJQ2WLlb5c4daYO
    EyLukSUjlvUJc6D3

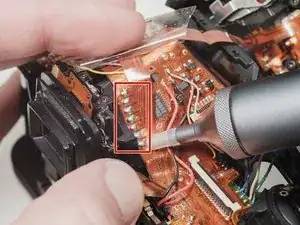

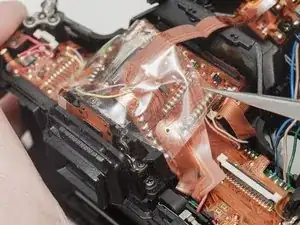

    • Remove the piece of cellophane tape covering the flex connections.

    • Desolder flex connetions.

  11. 6DywwTiY5RGgCAcv
    6DywwTiY5RGgCAcv
    XF4HViMGbDS6ypPA
    5bAmXUI3nlZsZAgC

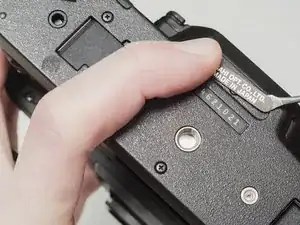

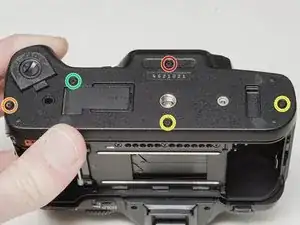

    • Use isopropyl alcohol to soften the adhesive under the country plate and remove.

    • Remove one 5mm #00 screw.

    • Remove one 7.5mm #00 screw.

    • Remove two 4.5mm #00 screws.

    • Remove one 5.5mm #00 screw.

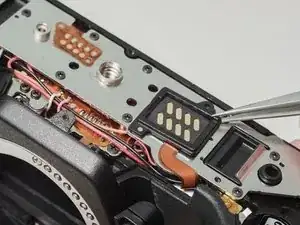

    • Remove the plastic frame around the accessory grip contacts.

  12. SMGROWKqTlyhgSYN

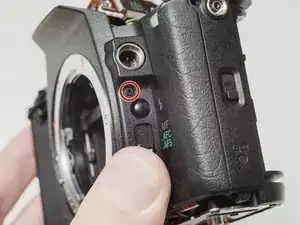

    • Remove one 4.0 mm #00 screw.

    • Remove left cover.

  13. BTmOqixChXpiyMrm

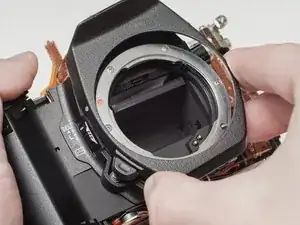

    • Remove front cover.

  14. X3XoFTBttscUu6LV
    X3XoFTBttscUu6LV
    D4MgEcLddN6ITJZb
    llasHxoHqCyTt1Pl

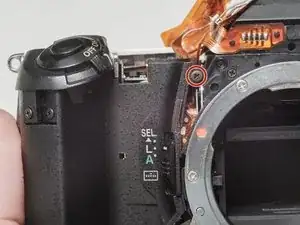

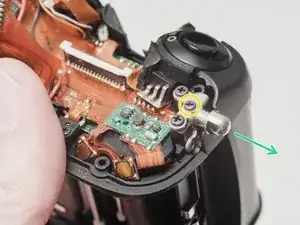

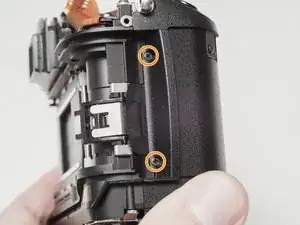

    • Remove one 6.0 mm #00 screw.

    • Remove two 3.5 mm #00 screws.

    • Remove one 5.0 mm #00 screw.

    • Remove the strap lug.

  15. OecWKhbmNlFlQukr

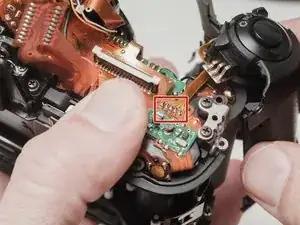

    • Carefully pull the right panel away from the body. It is still attached.

    • Desolder the flex connections.

Abschluss

To reassemble your device, follow these instructions in reverse order.
