Bonaok Q37 Battery Replacement

Geschrieben von: Han Sol Lee

Kommentare: 4

Schwierigkeitsgrad

Easy

Schritte

Zeitaufwand

5 - 10 Minuten

Einleitung

If your Bonaok Q37 microphone battery is draining more rapidly than usual, consider replacing the battery so you don’t have to buy a brand new device.

Before you begin, make sure the device is powered off.

Werkzeuge

ESD Safe Tweezers Blunt Nose

Schritt 1

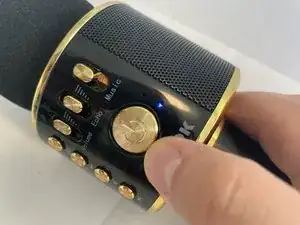

Power down the microphone before proceeding to the next step.

Schritt 2

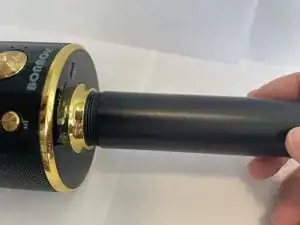

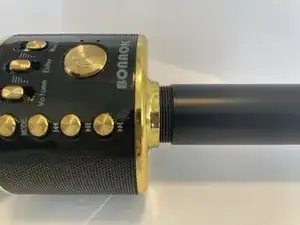

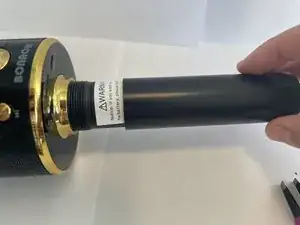

Hold the handle with your right hand and unscrew towards you.

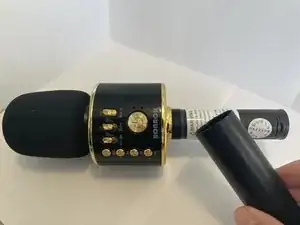

Once the cover is unscrewed completely, remove the handle cover.

Schritt 3

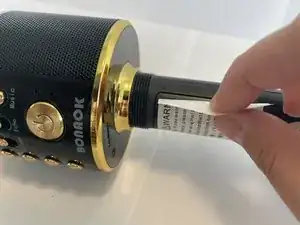

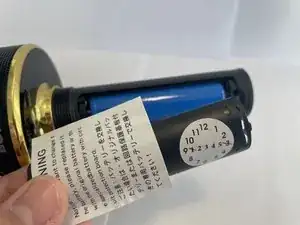

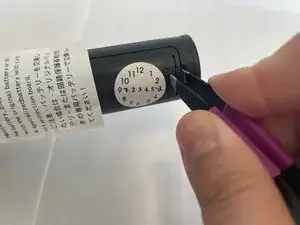

Lift up the side edges of the "Caution" sticker to unseal the battery cover.
If the battery compartment cover is not sealed with a caution sticker, proceed to Step 4.

Schritt 4

Use a pair of tweezers to push the cover towards the left.
Lift up the cover to remove it from the microphone.

Schritt 5

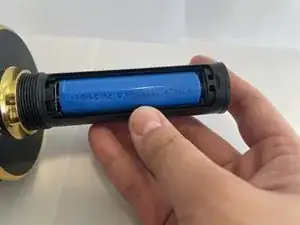

Push the battery towards the left and lift it up from the (+) side.

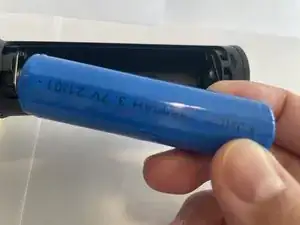

Remove the battery from the compartment.

Schritt 6

Insert a new battery into the compartment.
Make sure you insert the (-) end first, then push towards the left to make room for the whole battery to be pushed into the compartment.
