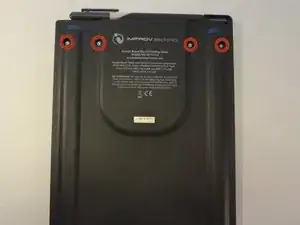

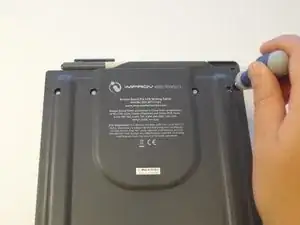

    • On the back of the device, remove the four 3/8" Torx head screws using the T-6 Torx bit.

    • A Torx bit is the piece that is inserted into a bit driver, also known as a screw driver.

  2. YhjVnEAcIioYALid
    YhjVnEAcIioYALid
    IojiVtToox14bva2
    QFHFZ5UQApxkLHO2
    • Remove the stylus if it is in the housing at the top of the device.

    • Turn the device so you are looking at it from the top down.

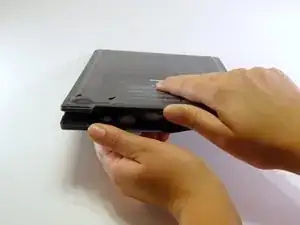

    • Using your thumbs on each wall of the stylus housing, open the frame of the device by gently pulling the two sides apart.

  3. IPV26RXFZEaQZ2hY
    IPV26RXFZEaQZ2hY
    sEDShklRsghcRvYs
    ot6OyQ1oEoF65sxY

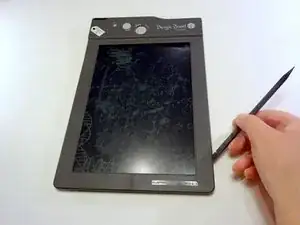

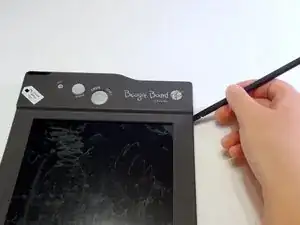

    • Insert a spudger into the seam between the front and back plates of the frame. Unsnap the snaps around the entire frame of the device.

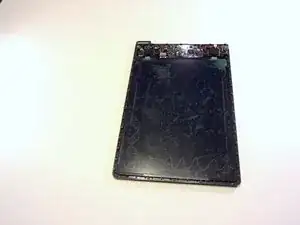

    • Remove the front face plate by pulling it straight up.

    • The unlock switch on the device's side might come off while undoing the internal snaps or removing the face plate. This is perfectly normal.

  4. wFTNRwic15J1InlW
    wFTNRwic15J1InlW
    jyVSjuaQQUfMLRHU

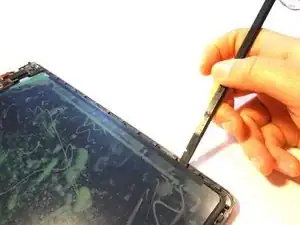

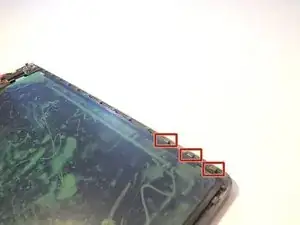

    • Use a spudger (or gently bend the back plate of the device) to unsnap the snaps holding the screen in place.

  5. vRvh6fGxXtCHEtkr
    vRvh6fGxXtCHEtkr
    XAcxpOZcXIbVUIKa

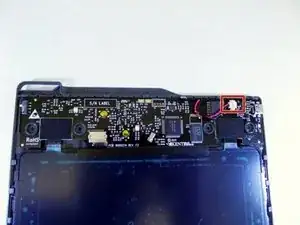

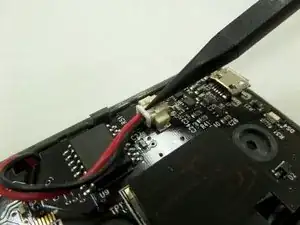

    • With a spudger, press against the lip of the connector closest to the wires to remove the battery connector from the motherboard.

  6. 2PZfhgq21ocPUlQl
    2PZfhgq21ocPUlQl
    1Th3wYwVIDmmy3wk

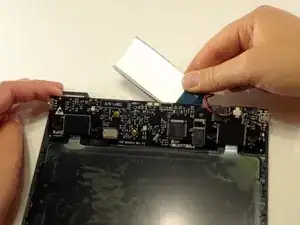

    • Gently lift the motherboard with a spudger or small object by inserting it in the seam between the back frame and the motherboard.

    • Remove the battery hidden behind the motherboard.

    It's a lipo 3.7v 830mAh battery, sn pl383172a 311454101663. It's about 75x35x4 mm. I can't find a replacement anywhere… links to the part would be helpful!

    francis -

  7. uvYhKVwZVsQX2Lms
    uvYhKVwZVsQX2Lms
    BeKxcoVPnFqI1ZMB

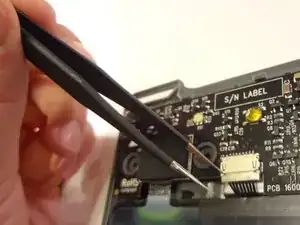

    • Use a pair of tweezers or a small, pointed object to gently pull the connector out on both the left and right sides.

    • Work out both sides evenly. The connector uses straight pins to attach to the motherboard. If the connector is not pulled out straight, you might have difficulty disconnecting the piece from the motherboard.

  8. EbHEPcKmxLcGnNnI
    EbHEPcKmxLcGnNnI
    2cT2aQuZfHNbRgEm

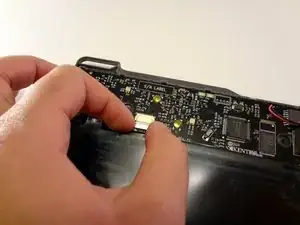

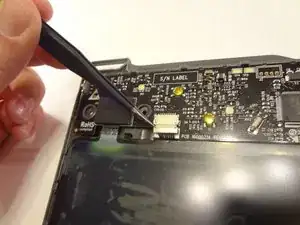

    • Once you see an even white line of the plastic pin casing appear (about 1 mm), use your index finger and thumb to pull the connector straight out from the motherboard.

  9. ZGSBdrUKglMMgRlG
    ZGSBdrUKglMMgRlG
    uGEeBstFBCRDrbP3
    1VvUbbsObXnLKA6K

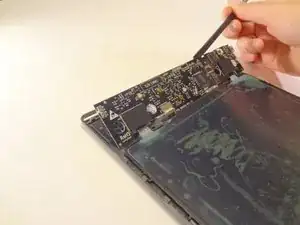

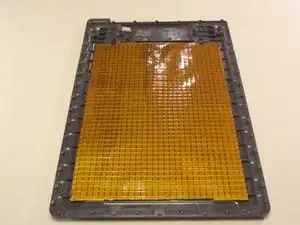

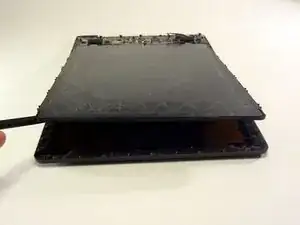

    • Using a spudger or prying tool, lift the connected screen and motherboard straight up to expose the gold-colored antenna taped to the back plate.

    • While removing the motherboard/screen, ensure the antenna connector cable is not damaged by guiding it through the open slot between the motherboard and the screen.

  10. XbLlgcHcBULK2L1l
    XbLlgcHcBULK2L1l
    jvAHqDgSBmFlLZZB

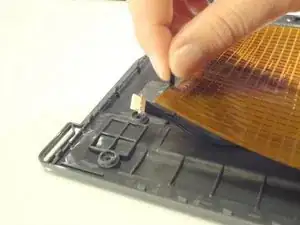

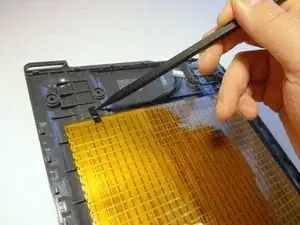

    • Using a spudger or your fingernail, remove the black electrical tape securing the antenna to the black plate.

  11. VONBTZfoOeSXGpdI
    VONBTZfoOeSXGpdI
    ADgYPUUHMPNXDorE

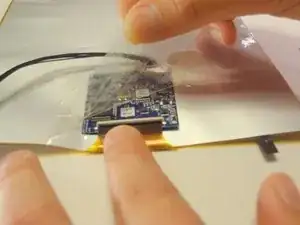

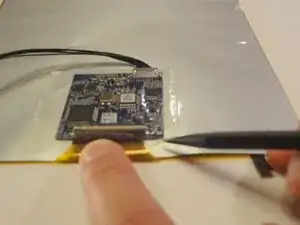

    • On the back side of the antenna, use a spudger or your fingernail to remove the transparent tape holding the transformer to the antenna.

  12. XCnrT5wCYREMPPLp
    XCnrT5wCYREMPPLp
    DFphLyQVDOLhk3I2
    wfsP1XpJYXHNNZHb

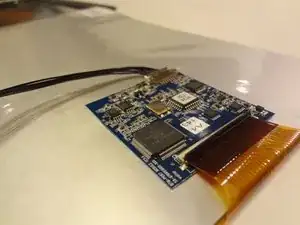

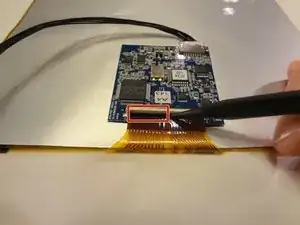

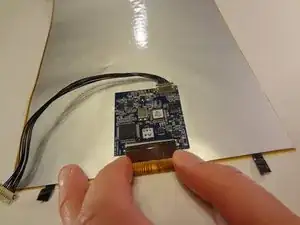

    • Using a spudger or the nail of your thumb, lift the black cover securing the antenna to the transformer up and away from yourself.

    • Using your index finger and thumb, disconnect the antenna from the transformer.

  13. vAXWyqEAJTPxDhyx
    vAXWyqEAJTPxDhyx
    yuOUtyyZxcxQ1xnB

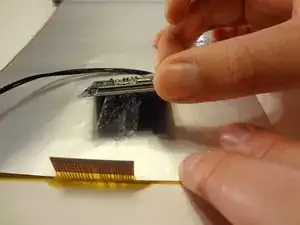

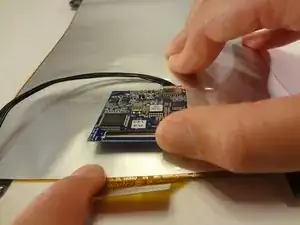

    • Gently pull apart the transformer from the back of the anenna.

    • The glue is weak enough to detach the two parts without damaging either item. Use care to remove the transformer slowly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
