Boosted Board 1st Generation Belts Replacement

Geschrieben von: Emily Imfeld
  • Kommentare: 0
Boosted Board 1st Generation Belts Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

25 Minuten

Einleitung

This guide will show you how to remove and replace the belts on your board. The rear motor is load with springs, so be carful and pay close attention to the steps when taking the board apart. If your belt is broken, you will need to buy a new one through Boosted. Happy fixing!

  1. YOcOByI3HhfklgSo
    YOcOByI3HhfklgSo
    C1pJWj4KaAnSLSBC

    • Loosen the two 16.74 mm motor mount hex nut screws with a 9/64" Allen wrench.

    • Do Not Remove the Screws.

  2. Gv4qYdR6wxkxyE5J

    • Compress the motor mount back towards the wheel.

    • While keeping the motor mount compressed, tighten one of the hex nuts that you loosened in the previous step.

    • The motor mounts are spring tensioned so it is necessary compress them to loosen the belts.

  3. iGsCd2AKmVtcFnis
    iGsCd2AKmVtcFnis
    SEboQcEKcPxsnX1L

    • Remove the axel nut with a 1/2" socket wrench

  4. ehwMhpudoLWDCQcD
    ehwMhpudoLWDCQcD
    TmJn5KHL21SPmajm
    xLMLPILUQSQqxlGN

    • Rotate and pull counterclockwise until the wheel comes off the axle completely.

    • The front washer will come off with the wheel.

    • Remove the back washer from the axle.

    • Replacing the wheel requires the bearings to be switched into the new wheel.

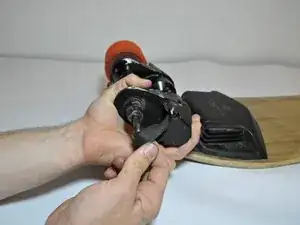

  5. nNB5tCWufImSt1je
    nNB5tCWufImSt1je
    W2KMvDPwOColy1Wv
    PUM1QVWiSGeH4yMX

    • Compress the motor mount back .

    • Slide the belt off the axle

  6. ONyYUxMbJJMVKuPl

    • Remove the two hex screws.

    • Remove the front hex screw.

    • When removing the Front hex screw, hold the motor mount and the truck together.

    • The springs inside the motor mount will push the motor out of the casing if they are not held together.

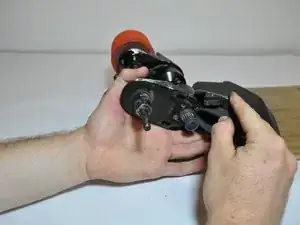

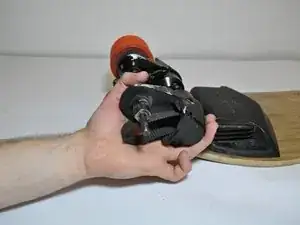

  7. DMQCXcEePMNrDQSD
    DMQCXcEePMNrDQSD
    PkdPFhSKKXNu4ZPe
    sA5Da5YEnXWHxWEy

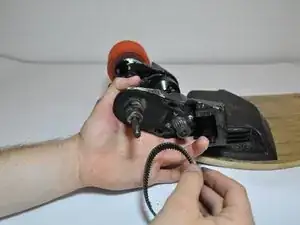

    • Making sure to hold the motor and truck together, lift off the belt casing and take off the belt.

    • Do Not let go of the motor and truck until the new belt is on and the Front hex screw is tightened securely.

    • The springs inside the motor mount will push the motor out of the casing if they are not held together.

Abschluss

To reassemble your device, follow these instructions in reverse order.
