Boosted Board 1st Generation Skateboard Bearings Replacement

Geschrieben von: Emily Imfeld
  • Kommentare: 0
Boosted Board 1st Generation Skateboard Bearings Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

25 Minuten

Einleitung

Good bearings are essential for smooth ride. This guide will help you take out and replace the skateboard bearings on the rear or front wheels of your Boosted Board. You can choose to replace the bearings with new ones, or just clean the existing bearings.

  1. YOcOByI3HhfklgSo
    YOcOByI3HhfklgSo
    C1pJWj4KaAnSLSBC

    • Loosen the two 16.74 mm motor mount hex nut screws with a 9/64" Allen wrench.

    • Do Not Remove the Screws.

  2. Gv4qYdR6wxkxyE5J

    • Compress the motor mount back towards the wheel.

    • While keeping the motor mount compressed, tighten one of the hex nuts that you loosened in the previous step.

    • The motor mounts are spring tensioned so it is necessary compress them to loosen the belts.

  3. iGsCd2AKmVtcFnis
    iGsCd2AKmVtcFnis
    SEboQcEKcPxsnX1L

    • Remove the axel nut with a 1/2" socket wrench

  4. ehwMhpudoLWDCQcD
    ehwMhpudoLWDCQcD
    TmJn5KHL21SPmajm
    xLMLPILUQSQqxlGN

    • Rotate and pull counterclockwise until the wheel comes off the axle completely.

    • The front washer will come off with the wheel.

    • Remove the back washer from the axle.

    • Replacing the wheel requires the bearings to be switched into the new wheel.

  5. ZfYSZVSoADHYX6Mo
    ZfYSZVSoADHYX6Mo
    ymxMw4iXxTqupYNS

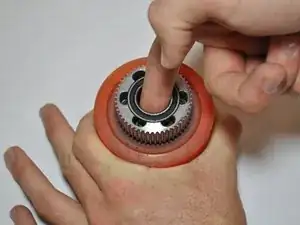

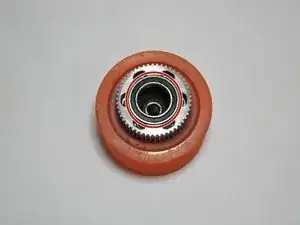

    • Use one finger to pull out the pulley bearing.

    • A good technique is to go around in a circle and lift from underneath the bearing in a carving motion.

  6. aqhZN2nRCF5AfGB5
    aqhZN2nRCF5AfGB5
    W1451KkPdFq4h5ph
    ZrXUXnbda1UTVN1D

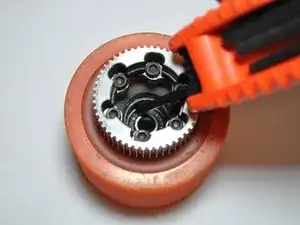

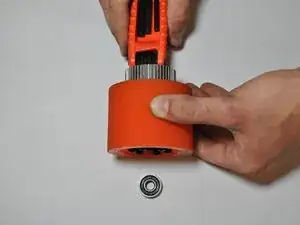

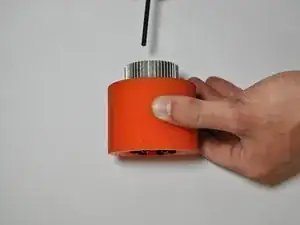

    • Use an Allen wrench to apply pressure to the inside edge of the bearing until it pops out

  7. ZQBewnxpiZtvAPP4
    ZQBewnxpiZtvAPP4
    iLXZQmohY2lqimGK
    EvDVepnSJmrWLm3a

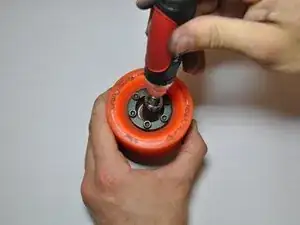

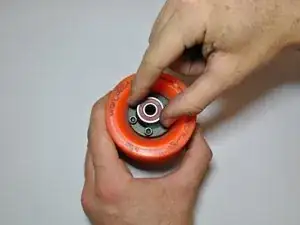

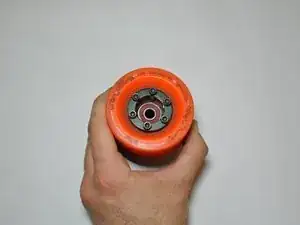

    • Replace bearing by dropping it in the center of the wheel and use a socket wrench to pop in back it place

  8. ZUvUFmkypornhOm3
    ZUvUFmkypornhOm3
    PleXgL6pCyVwh3Rp
    D3Bh333mNgOScSQo

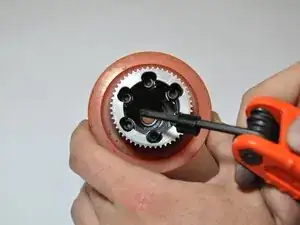

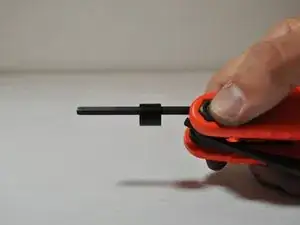

    • Slide the bearing spacer on to an Allen wrench

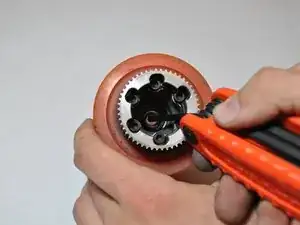

    • Align the Allen wrench in the center of the bearing and drop the spacer directly in the middle

    • Repeat Step 7 for placing the bearing in this side of the wheel.

Abschluss

To reassemble your device, follow these directions in reverse order.
